L12500750250B

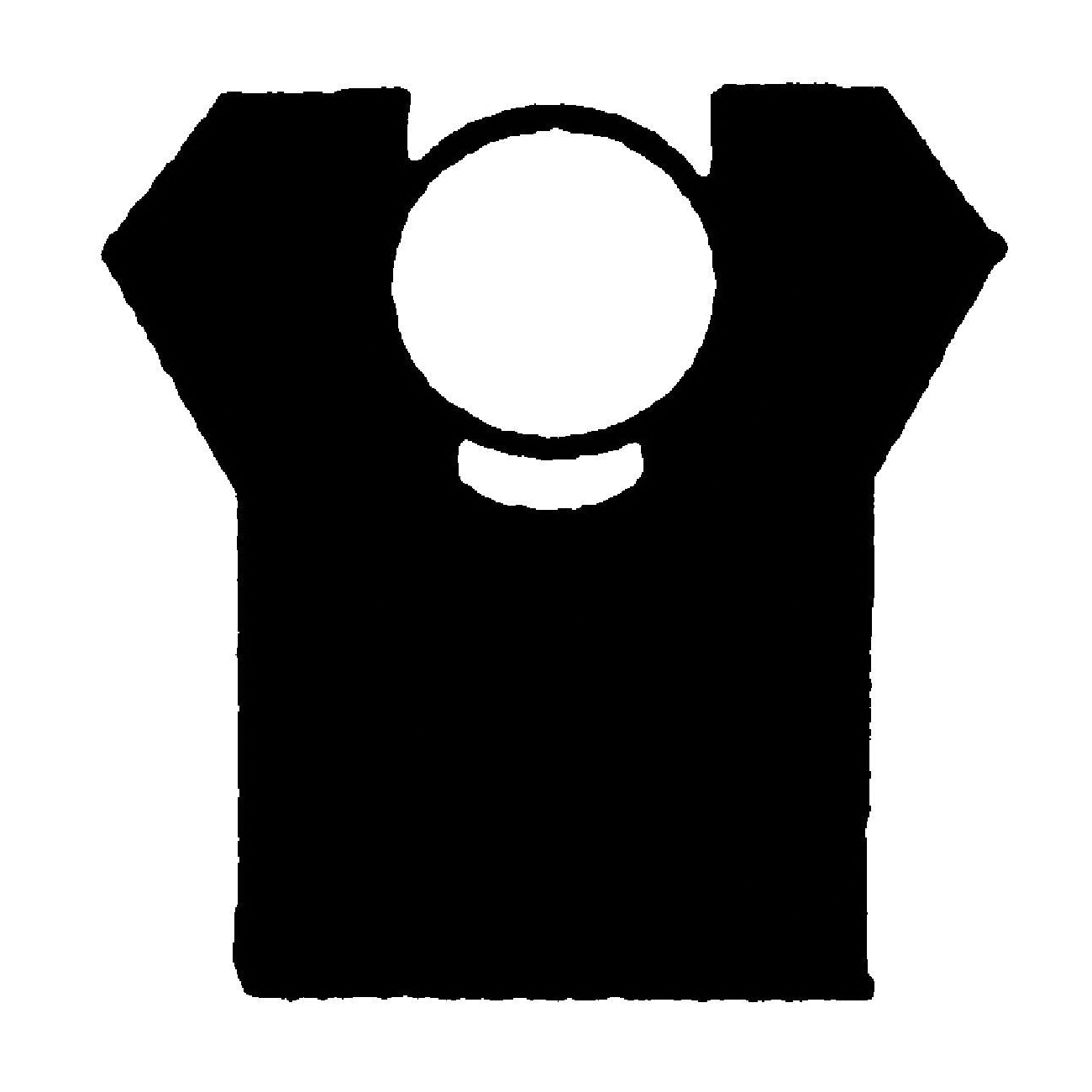

APG L12500750250B Type B Loaded Lip Seal, 3/4 in ID 1/8 in OD, 92 A Urethane

  • Item#: L12500750250B
  • Mfr#: L12500750250B
    • The loaded lip seal type "B" durometer back beveled sealing lip
    • This provides greater film breaking and increased unit loading at the sealing surface
    • The seal depth is generally 1-1/2 times the radial width to ensure seal stability in the most rugged applications
    • It is most commonly used as a rod seal
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Loaded Lip Seals are very versatile and can be used as rod seals or piston seals. They are considered to be multi-purpose seals and are designed for significantly improved performance. APG Loaded Lip Seals are molded from 92 Durometer Urethane with a 70 Durometer Nitrile energizer. The energizer ensures constant pressure on the sealing lips.

APG, L12500750250B, Loaded Lip Seal, Type B, 3/4 in ID, 1/8 in OD, -65 to 300 deg F, 92 A Urethane

SPECIFICATIONS

Durometer      :      92 Urethane/70 Nitrile
Temperature Rating      :      -65 to 300 deg F
Type      :      Type B
Inside Diameter      :      3/4 in
Outside Diameter      :      1/8 in
Material      :      92 A Urethane

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/APG_TPS1400_Catalog.pdf
