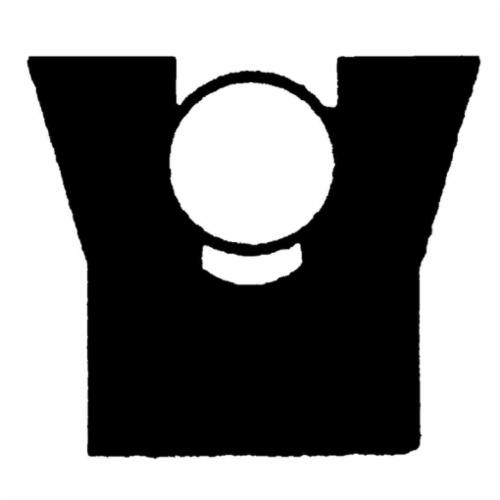

APG L12500312 Standard Loaded Lip Seal, 5/16 in ID x 9/16 in OD, Urethane/Nitrile

  • Item#: L12500312
  • Mfr#: L12500312
  • The standard loaded lip seal is the most widely used design of loaded lip seal
  • By energizing the sealing lips with an endless O-ring, you are assured of uniform, positive lip contact and excellent low pressure sealing
  • The seal depth is equal to the radial width, which results in a square design
  • Standard loaded lip seals can be widely used to interchange with existing hydraulic packing and/or O-rings without changing dimensions
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading


Loaded Lip Seals are very versatile and can be used as rod seals or piston seals. They are considered to be multi-purpose seals and are designed for significantly improved performance. APG Loaded Lip Seals are molded from 92 Durometer Urethane with a 70 Durometer Nitrile energizer. The energizer ensures constant pressure on the sealing lips.

APG Loaded Lip Seal, Standard, 5/16 in ID, 9/16 in OD, 92 Urethane/70 Nitrile Durometer, -65 to 300 deg F, Urethane/Nitrile


Durometer      :      92 Urethane/70 Nitrile
Temperature Rating      :      -65 to 300 deg F
Type      :      Standard
Inside Diameter      :      5/16 in
Outside Diameter      :      9/16 in
Material      :      Urethane/Nitrile
