ABB
Z2HFUKAB000E0EEE48XX

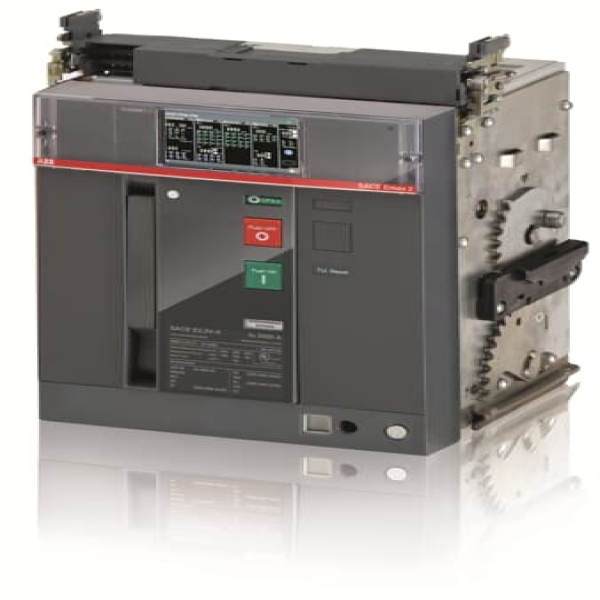

ABB Z2HFUKAB000E0EEE48XX Type WMP Automatic Low Voltage Air Circuit Breaker With 6 Auxiliary Contacts, 690 VAC, 2000 A, 100 kA at 400/415/440 VAC, 85 kA at 500/525/690 VAC Interrupt, 3 Poles, Ekip Dip/LSI/Shunt Trip
- Item#: Z2HFUKAB000E0EEE48XX
- Mfr#: Z2HFUKAB000E0EEE48XX
- UPC: 888614601093
- Efficiency and control
- Complete integration into smart grids, buildings and industrial plants is possible, up to 30% time savings for wiring connections
- Compact dimensions and high performance, up to a 25% cost savings in both footprint and copper
- Productivity is increased while all stages, from design to daily operations are simplified
- Up to 15% time savings for terminal connection installation
- Unique alarm tracking and network analyzer for the best continuity of service
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Emax 2 all-in-one is the first circuit breaker that matches new grid requirements. It enables a direct communication to the new energy management cloud computing platform ABB Ability™ Electrical Distribution Control System. Smart and plug and play architecture makes Emax 2 all-in-one easy to use. Leveraging also unmatched electrical performances, Emax 2 sets a new circuit breaker benchmark for the needs of today and tomorrow.
ABB Air Circuit Breaker, Type WMP Automatic Low Voltage, 690 VAC, 2000 A, 50/60 Hz Frequency, 100 kA at 400/415/440 VAC, 85 kA at 500/525/690 VAC Interrupt, E2.2H-A Frame, Ekip Dip/LSI/Shunt Trip, 3 Pole, Box Terminal Connection, IP20 Enclosure, Floor Mounting, 104 deg F, 425 mm H x 317 mm W x 383 mm D Dimensions
SPECIFICATIONS
| Connection Type | : | Box Terminal |
| Dimensions | : | 425 mm H x 317 mm W x 383 mm D |
| Enclosure Type | : | IP20 |
| Frame | : | E2.2H-A |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | Floor |
| Temperature Rating | : | 104 deg F |
| Type | : | Type WMP Automatic Low Voltage |
| Voltage Rating | : | 690 VAC |
| Amperage Rating | : | 2000 A |
| Interrupt Rating | : | 100 kA at 400/415/440 VAC, 85 kA at 500/525/690 VAC |
| Number of Poles | : | 3 |
| Trip Type | : | Ekip Dip/LSI/Shunt |
