XT1NU3070AFF000XXX

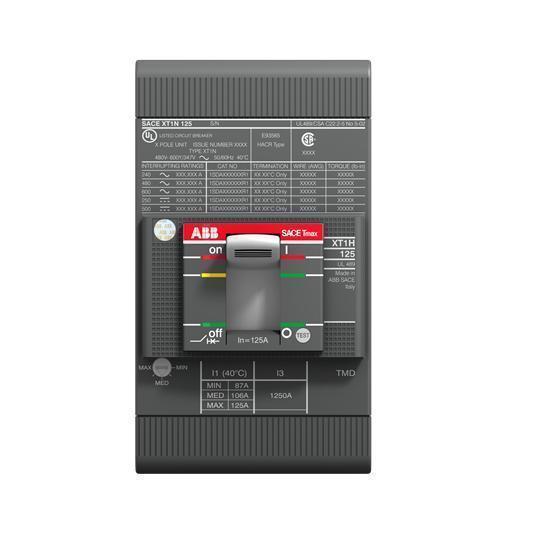

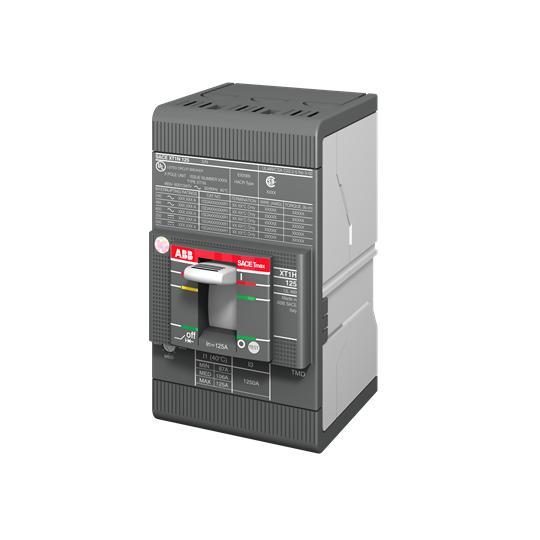

ABB XT1NU3070AFF000XXX Tmax XT Low Voltage Molded Case Circuit Breaker, 600Y/347/690 VAC, 70 A, 18 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic Trip
- CP#:
- Item#: XT1NU3070AFF000XXX
- Mfr#: XT1NU3070AFF000XXX
- UPC: 888614401709
- Specific electronic trip units for energy metering, motor protection and generator protection in addition to a Modbus communication module for integration in a supervision system
- F front terminals, no lugs installed on line and load side termination (top/bottom)
- Wide range of keylocks and padlocking options, plug-in and withdrawable versions to speed up maintenance operations and improved diagnostic to have ready to use information about breakers status
- A dedicated range of accessories and a renewed solution for electronic trip units to adapt Tmax XT to different applications scenarios installation flexibility
- XTraordinary limiting characteristics allow savings in copper and footprint in switchboard, high selectivity values and very compact motor protection solutions high breaking capacity
- 18 kA normal breaking capacity
- Frame XT1 to 125A, 600Y/347 V (UL)/160 A, 690 V (IEC) thermal magnetic protection
- Feature high specific let-through current peak and energy limiting characteristics that allow the circuits and equipment on the load side to be sized in optimum way
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Tmax XT molded case circuit breakers guarantee an extremely high performance level while being progressively smaller in size, simple to install and able to provide increasingly better safety.
ABB, XT1NU3070AFF000XXX, Molded Case Circuit Breaker, Low Voltage, Series: Tmax XT, 600Y/347/690 VAC, 70 A, 50/60 Hz Frequency, 18 kA Interrupt, XT1 125A Frame, Fixed Thermal/Fixed Magnetic Trip, 70 to 700 A Trip, 3 Pole, Front Line/Load Side Connection, Double Insulated Insulation, -13 to 158 deg F, 5.12 in H x 3 in W x 2.75 in D Dimensions
SPECIFICATIONS
| Connection Type | : | Front Line/Load Side |
| Dimensions | : | 5.12 in H x 3 in W x 2.75 in D |
| Frame | : | XT1 125A |
| Frequency Rating | : | 50/60 Hz |
| Insulation Type | : | Double Insulated |
| Series | : | Tmax XT |
| Temperature Rating | : | -13 to 158 deg F |
| Trip Range | : | 70 to 700 A |
| Type | : | Low Voltage |
| Voltage Rating | : | 600Y/347/690 VAC |
| Amperage Rating | : | 70 A |
| Interrupt Rating | : | 18 kA |
| Number of Poles | : | 3 |
| Trip Type | : | Fixed Thermal/Fixed Magnetic |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1026/ABB_XT1NU3070AFF000XXX_Specification_Sheet.pdf
