TS3N015TW

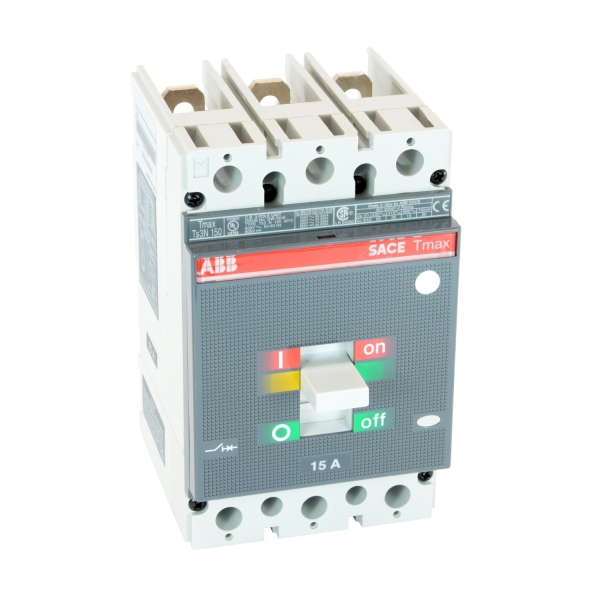

ABB Tmax TS3N015TW Molded Case Circuit Breaker, 600 VAC/VDC, 15 A, 14 to 20 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
- CP#:
- Item#: TS3N015TW
- Mfr#: TS3N015TW
- UPC: 804325347112
- Double insulation construction allows for the UL listed field installation of internal accessories without exposure to energized parts
- Complete range of electrical and mechanical accessories
- Positive operation ensures precise position of the moving contacts, this guarantees safe and reliable signaling by the device
- Compact size
- Short-circuit protection is provided by an precise magnetic coil
- Advanced contact design and arcing chambers provide the latest in fault current protection
- Can be installed in either the horizontal or vertical planes
- For power distribution applications
- Suitable for reverse feed applications
- Normal interrupting rating class
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The TS3 breaker family ranges from 15 through 225 A. The TS3 trip mechanisms are non-interchangeable and use sensitive electromagnetic relays for over current trip protection. Heat sensitive bimetals are used for thermal over current protection. Short circuit current protection begins at 10 times the thermal rating of the breaker and uses a magnetic coil principle.
ABB Tmax Molded Case Circuit Breaker, 600 VAC/VDC, 15 A, 14 to 20 kA Interrupt, 225 A Frame, Thermal/Magnetic Trip, 500 A Trip, 3 Pole, Surface Mounting, 6.7 in H x 4.13 in W x 4.07 in D Dimensions
SPECIFICATIONS
| Dimensions | : | 6.7 in H x 4.13 in W x 4.07 in D |
| Frame | : | 225 A |
| Mounting Type | : | Surface |
| Trip Range | : | 500 A |
| Voltage Rating | : | 600 VAC/VDC |
| Amperage Rating | : | 15 A |
| Interrupt Rating | : | 14 to 20 kA |
| Number of Poles | : | 3 |
| Trip Type | : | Thermal/Magnetic |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ABB_TS3N015TW_Specification_Sheet.pdf
