T6N800TW

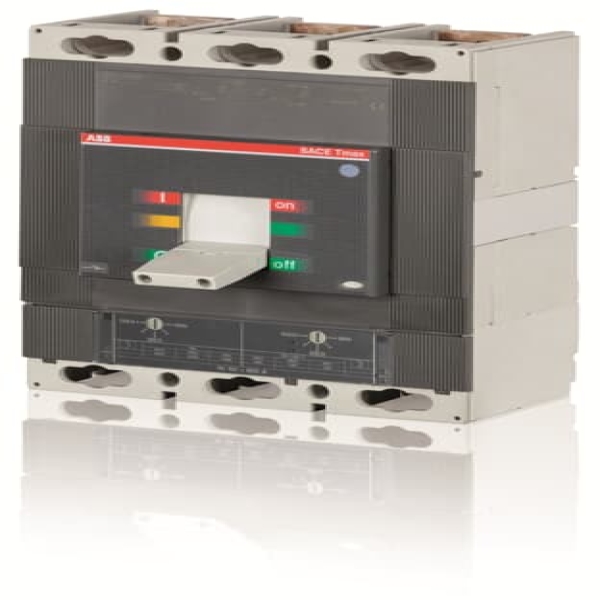

ABB Tmax T6N800TW Molded Case Circuit Breaker, 600 VAC/VDC, 800 A, 20 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
- CP#:
- Item#: T6N800TW
- Mfr#: T6N800TW
- UPC: 804325329675
- Double insulation - this construction characteristic allows for the CSA/UL listed field installation of internal accessories without exposure to energized parts
- Positive operation - breakers from ABB ensure that the toggle indicates the precise position of the moving contacts, this guarantees safe and reliable signaling by the device
- Installation - Tmax molded case circuit breakers can be installed in panels and switchboards in either the horizontal or vertical planes while being fed from either end without any derating of their performance characteristics
- Compact size
- The Tmax molded case circuit breakers are CSA-UL listed and IEC rated for global application and acceptance
- The versions of the Tmax family are suitable for reverse feed applications
- Normal interrupt rating class
- Without lug
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB is once again demonstrating its commitment to new product development and its superiority in product technology. Never before has the industry seen such high performance, versatility and standardization in a range of molded case circuit breakers. The ABB Tmax line of circuit breakers, with a range up to 3000 A, has several key features that go along with its very small size.
ABB Tmax Molded Case Circuit Breaker, 600 VAC/VDC, 800 A, 50/60 Hz Frequency, 20 kA Interrupt, T6N Frame, Thermal/Magnetic Trip, 4000 to 8000 A Trip, 3 Pole, 2/0 AWG to 400 kcmil Wire, Double Insulated Insulation, 10.55 in H x 8.26 in W x 4.07 in D Dimensions
SPECIFICATIONS
| Dimensions | : | 10.55 in H x 8.26 in W x 4.07 in D |
| Frame | : | T6N |
| Frequency Rating | : | 50/60 Hz |
| Insulation Type | : | Double Insulated |
| Trip Range | : | 4000 to 8000 A |
| Wire Size | : | 2/0 AWG to 400 kcmil |
| Voltage Rating | : | 600 VAC/VDC |
| Amperage Rating | : | 800 A |
| Interrupt Rating | : | 20 kA |
| Number of Poles | : | 3 |
| Trip Type | : | Thermal/Magnetic |
