T6N600BW

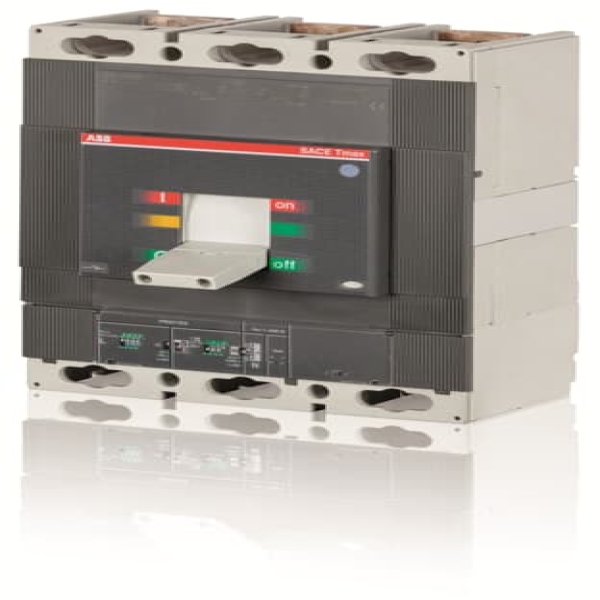

ABB T6N600BW Tmax Normal Interrupt Molded Case Circuit Breaker, 600 VAC, 600 A, 20 kA Interrupt, 3 Poles, LS/I Trip
- CP#:
- Item#: T6N600BW
- Mfr#: T6N600BW
- UPC: 804325331012
- Short circuit protection is provided by an electronic trip unit
- Advanced contact design and arcing chambers provide the latest in fault current protection
- Adjustable trip point adjustable from 2000 to 4000A
- Double insulation allows UL listed field installation of internal accessories
- Suitable for reverse feed applications
- Compact size
- Without lug
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB Molded Case Circuit Breaker, Normal Interrupt, Series: Tmax, 600 VAC, 600 A, 50/60 Hz Frequency, 20 kA Interrupt, T6 600/800A Frame, LS/I Trip, 240 to 600 A Trip, 3 Pole, 3 ph, Toggle Actuator, Panel Mounting, 10.55 in H x 8.26 in W x 4.07 in D Dimensions
SPECIFICATIONS
| Actuator Type | : | Toggle |
| Dimensions | : | 10.55 in H x 8.26 in W x 4.07 in D |
| Frame | : | T6 600/800A |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | Panel |
| Phase | : | 3 |
| Series | : | Tmax |
| Trip Range | : | 240 to 600 A |
| Type | : | Normal Interrupt |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 600 A |
| Interrupt Rating | : | 20 kA |
| Number of Poles | : | 3 |
| Trip Type | : | LS/I |
DOCUMENTS
-
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ABB_T6N600BW_Brochure.pdf
