T3N200TW

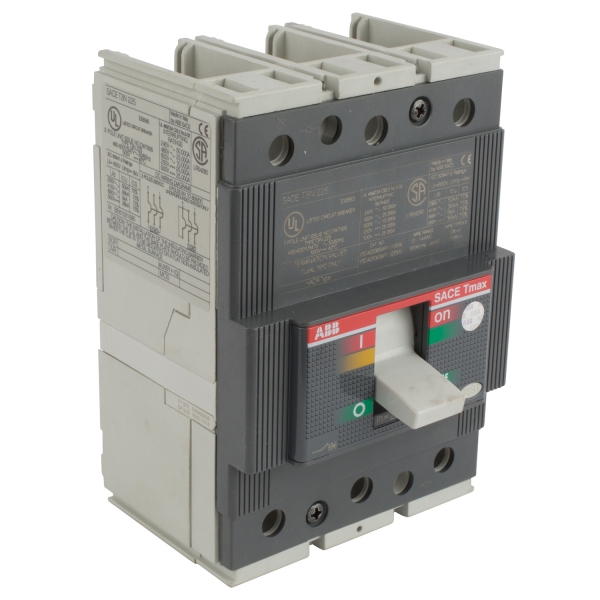

ABB Tmax T3N200TW Normal Interrupt Molded Case Circuit Breaker, 480 VAC/500 VDC, 200 A, 25 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
- CP#:
- Item#: T3N200TW
- Mfr#: T3N200TW
- UPC: 662019930428
- Short circuit protection is provided by a precise magnetic coil
- Advanced contact design and arcing chambers provide the latest in fault current protection
- Can be installed in either the horizontal or vertical planes
- Suitable for reverse feed applications
- Without lugs
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The T3 breaker family ranges from 60 through 225 A. The T3 trip units are non-interchangeable and use the very latest technology in electromagnetic relays for overcurrent trip protection. Thermal overload protection is provided by heat sensitive bimetals. Short circuit protection begins at 10X the thermal rating of the breaker using a precise magnetic coil. State of the art construction in contacts and arcing chambers aid in limiting damaging fault currents through the protected circuits.
ABB Tmax Molded Case Circuit Breaker, Normal Interrupt, 480 VAC/500 VDC, 200 A, 50/60 Hz Frequency, 25 kA Interrupt, T3-225A Frame, Thermal/Magnetic Trip, 0 to 2000 A Trip, 3 Pole, 3 ph, Toggle Actuator, Bolt-On Connection, 14 AWG to 300 kcmil Wire, Panel Mounting, 5.9 in H x 4.13 in W x 2.76 in D Dimensions
SPECIFICATIONS
| Actuator Type | : | Toggle |
| Connection Type | : | Bolt-On |
| Dimensions | : | 5.9 in H x 4.13 in W x 2.76 in D |
| Frame | : | T3-225A |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | Panel |
| Phase | : | 3 |
| Trip Range | : | 0 to 2000 A |
| Type | : | Normal Interrupt |
| Wire Size | : | 14 AWG to 300 kcmil |
| Voltage Rating | : | 480 VAC/500 VDC |
| Amperage Rating | : | 200 |
| Interrupt Rating | : | 25 kA |
| Number of Poles | : | 3 |
| Trip Type | : | Thermal/Magnetic |
