T2S060TW

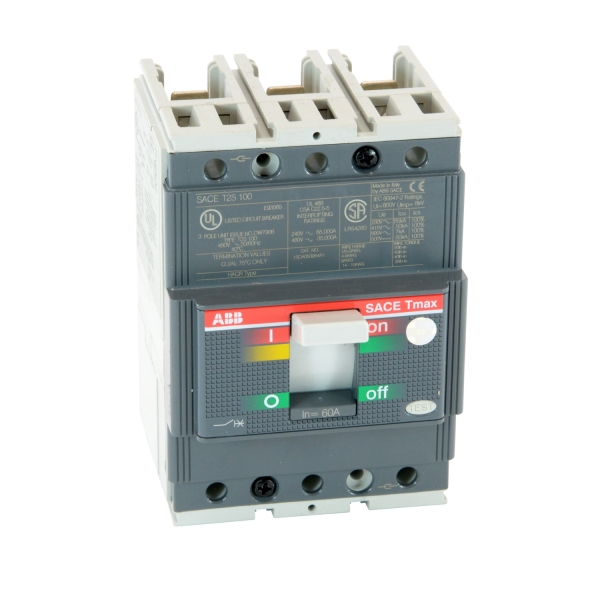

ABB Tmax T2S060TW Molded Case Circuit Breaker, 480 VAC, 60 A, 35 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
- CP#:
- Item#: T2S060TW-P01
- Mfr#: T2S060TW
- UPC: 662019935935
- Double insulation construction allows for the UL listed field installation of internal accessories without exposure to energized parts
- Complete range of electrical and mechanical accessories
- Positive operation ensures precise position of the moving contacts, this guarantees safe and reliable signaling by the device
- Compact size
- Short-circuit protection is provided by an precise magnetic coil
- Advanced contact design and arcing chambers provide the latest in fault current protection
- For power distribution applications
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The T2 breaker family ranges from 15 through 100 A. The T2 trip units are non-interchangeable and use the very latest technology in electromagnetic relays for over current trip protection as well as a version with microprocessor based electronic trip unit. Thermal overload protection is provided by heat sensitive bimetals. State of the art construction in contacts and arcing chambers aid in limiting damaging fault currents through the protected circuits.
ABB Tmax Molded Case Circuit Breaker, 480 VAC, 60 A, 35 kA Interrupt, 100 A Frame, Thermal/Magnetic Trip, 600 A Trip, 3 Pole, Surface Mounting, 5.12 in H x 3.54 in W x 2.76 in D Dimensions
SPECIFICATIONS
| Dimensions | : | 5.12 in H x 3.54 in W x 2.76 in D |
| Frame | : | 100 A |
| Mounting Type | : | Surface |
| Trip Range | : | 600 A |
| Voltage Rating | : | 480 VAC |
| Amperage Rating | : | 60 A |
| Interrupt Rating | : | 35 kA |
| Number of Poles | : | 3 |
| Trip Type | : | Thermal/Magnetic |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ABB_T2S060TW_Specification_Sheet.pdf
