SU202M-C10

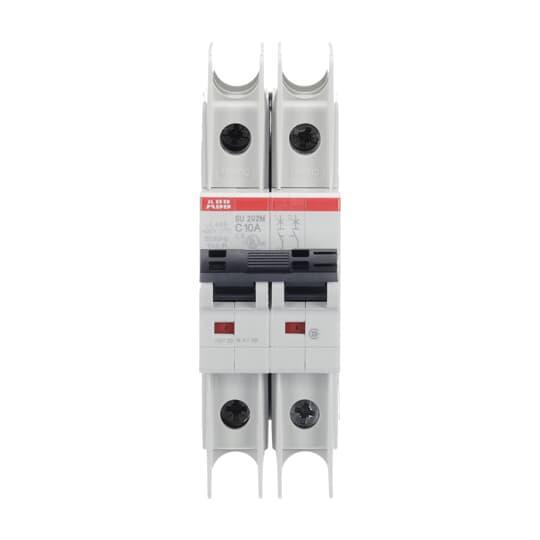

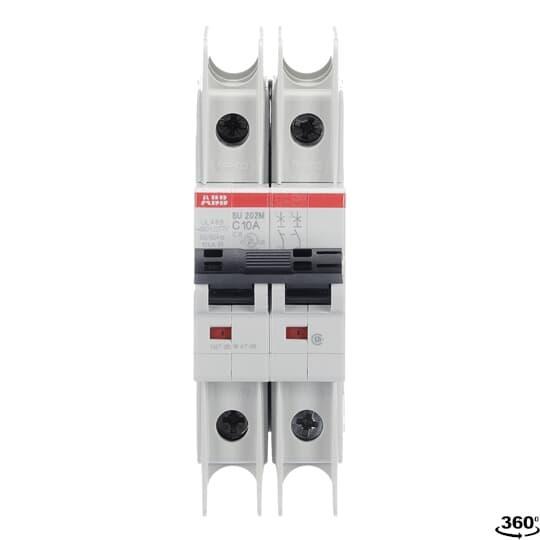

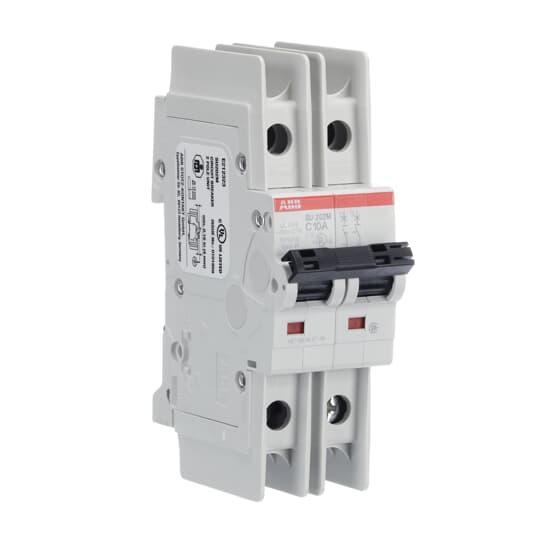

ABB SU202M-C10 SU200M High Performance Miniature Circuit Breaker, 277/480Y VAC, 48/96 VDC, 10 A, 10 kA Interrupt, 2 Poles, C-Curve Trip
- CP#:
- Item#: SU202M-C10
- Mfr#: SU202M-C10
- UPC: 888614422438
- Current limiting according to UL 489
- Failsafe bi-directional cylinder-lift terminal
- High performance provides compact supplementary, energy limiting, circuit protection
- Finger safe and multi-function terminals
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The SU200M, SU200MR, and S200UDC miniature circuit breakers offer a compact solution for protection requirements. The SU200 series devices are current-limiting according to UL 489 and DIN rail mounted.
ABB, SU202M-C10, Miniature Circuit Breaker, High Performance, Series: SU200M, 277/480Y VAC, 48/96 VDC, 10 A, 50/60 Hz Frequency, 10 kA Interrupt, C-Curve Trip, 2 Pole, Screw Connection, 18 to 4 AWG Wire, Class II Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 35 mm W x 111 mm H Dimensions, Light Gray
SPECIFICATIONS
| Color | : | Light Gray |
| Connection Type | : | Screw |
| Dimensions | : | 69 mm L x 35 mm W x 111 mm H |
| Enclosure Type | : | IP20/IP40 |
| Frequency Rating | : | 50/60 Hz |
| Insulation Type | : | Class II |
| Mounting Type | : | DIN Rail |
| Series | : | SU200M |
| Temperature Rating | : | -25 to 55 deg C |
| Type | : | High Performance |
| Wire Size | : | 18 to 4 AWG |
| Voltage Rating | : | 277/480Y VAC, 48/96 VDC |
| Amperage Rating | : | 10 A |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 2 |
| Trip Type | : | C-Curve |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/137/IDW_DOCUMENT_def88bf47a9754288be5dde64c4fecb8f971bf568a9d696b30df46bcd4f03e9b.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/286/IDW_DOCUMENT_27b6d52149e304b0fb659c38d92868ef1b592a0b9c399df78e4e563e9b881e68.pdf
