SU201M-C3

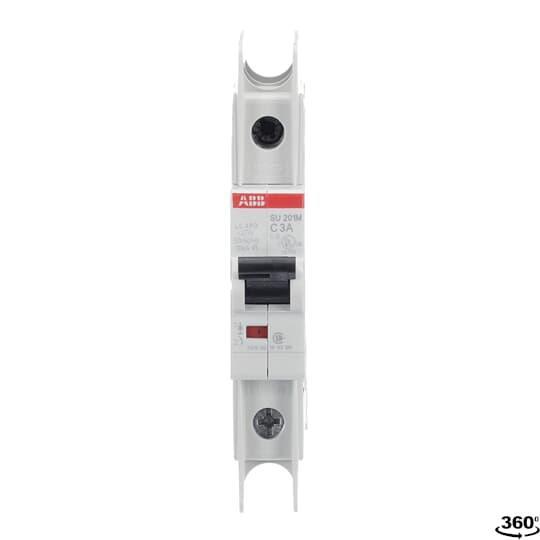

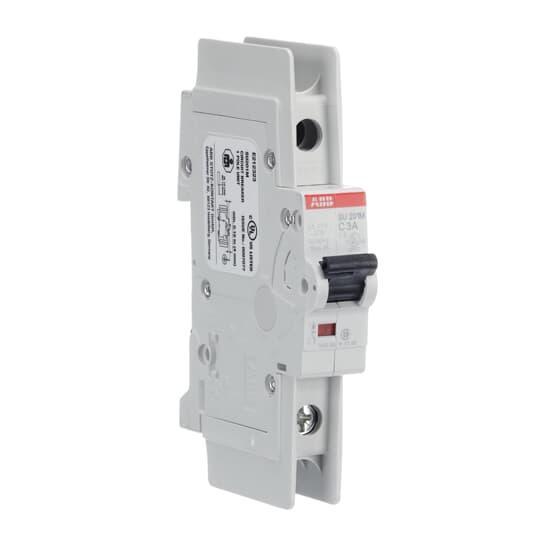

ABB SU201M-C3 SU200M High Performance Miniature Circuit Breaker, 277/480Y VAC/48/96 VDC, 3 A, 10 kA Interrupt, 1 Poles, C-Curve/Thermal Magnetic Trip
- CP#:
- Item#: SU201M-C3
- Mfr#: SU201M-C3
- UPC: 888614422162
- 0.75 to 25 sq-mm flexible with ferrule, 0.75 to 25 sq-mm flexible, 0.75 to 35 sq-mm rigid, 0.75 to 35 sq-mm stranded connecting capacity
- Auxiliary contact
- TH35-7.5 (35 x 7.5 mm DIN rail acc to IEC 60715), TH35-15 (35 x 15 mm DIN rail acc to IEC 60715)
- Fast breaking time (2.3 to 2.5 m sec)
- IP40 enclosure with cover
- Finger safe and multi-function terminals
- Current limiting
- Failsafe bi-directional cylinder-lift screw terminal type
- 25g/2 shocks/13 ms shock resistance, 5g, 20 cycles at 5 to 150 Hz with load 0.8 in vibrations resistance, 28 cycles environment with 55 deg c/90-96 % and 25 deg c/95-100 %, (400 VAC) 15 kA rated ultimate short circuit breaking capacity (ICU), (400 VAC) 11.3 kA rated service short circuit breaking capacity (ICS), III category overvoltage, 3 deg pollution , red on/green off contact position indication, 20000 cycle mechanical endurance, 2.8 N-m tightening torque
- RAL 7035 gray color
- 18 to 4 AWG conductor, 18 to 8 AWG busbar
- Suitable for reverse feed (except for S200UDC)
- High performance MCB provides compact supplementary, energy limiting, branch circuit protection
- Bus connection system
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The miniature circuit breaker SU 200 M is ABB solution for UL 489 branch circuit protection up to 480 Y/277 V AC and 96 VDC. This circuit breaker is an all round device for AC and DC applications for universal use in North American and global markets due to its approvals acc. To the international standards UL, CSA and IEC. Moreover, SU 200 M is fully compatible with System pro M compact® UL 489 accessories.
ABB, SU201M-C3, Miniature Circuit Breaker, High Performance, Series: SU200M, 277/480Y VAC/48/96 VDC, 3 A, 50 to 60 Hz Frequency, 10 kA Interrupt, C-Curve/Thermal Magnetic Trip, 1 Pole, Screw Connection, 18 to 8 AWG Wire, Class I Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 17.5 mm W x 111 mm H Dimensions, Gray
SPECIFICATIONS
| Color | : | Gray |
| Connection Type | : | Screw |
| Dimensions | : | 69 mm L x 17.5 mm W x 111 mm H |
| Enclosure Type | : | IP20/IP40 |
| Frequency Rating | : | 50 to 60 Hz |
| Insulation Type | : | Class I |
| Mounting Type | : | DIN Rail |
| Series | : | SU200M |
| Temperature Rating | : | -25 to 55 deg C |
| Type | : | High Performance |
| Wire Size | : | 18 to 8 AWG |
| Voltage Rating | : | 277/480Y VAC/48/96 VDC |
| Amperage Rating | : | 3 A |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 1 |
| Trip Type | : | C-Curve/Thermal Magnetic |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1025/ABB_SU201M-C3_Specification_Sheet.pdf -
Owners/User Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1025/ABB_SU202M-Z63_User_Manual.pdf
