S803S-D63

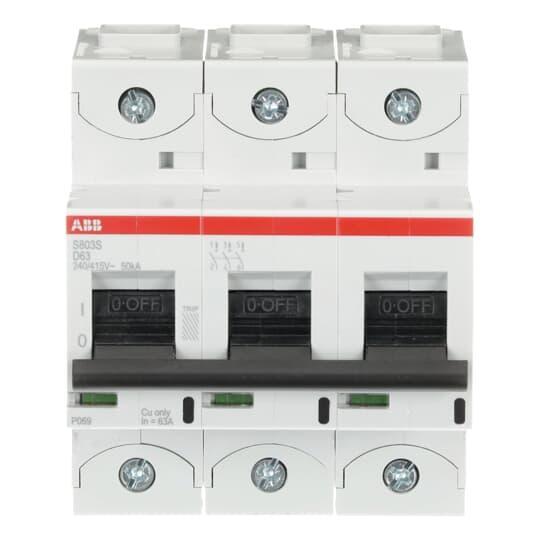

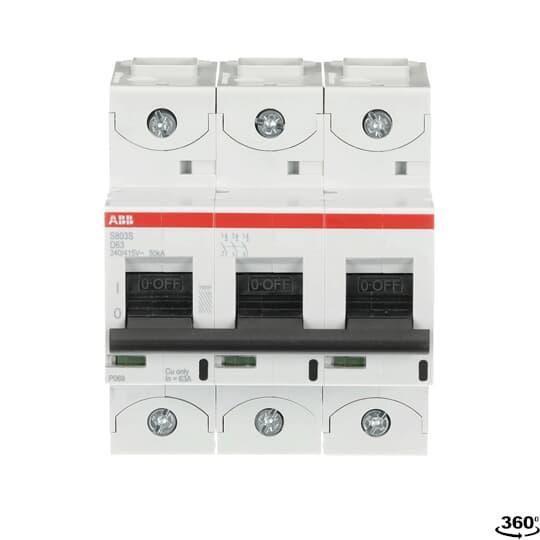

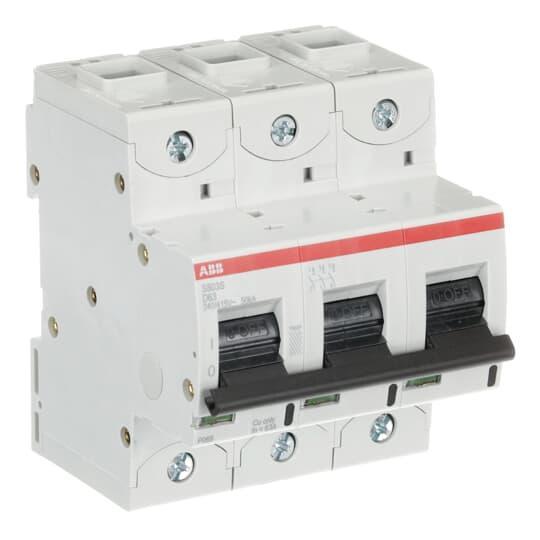

ABB System pro M compact® S803S-D63 S800S-D High Performance Miniature Circuit Breaker With Cage Terminal, 400/690 VAC, 63 A, 50 kA Interrupt, 3 Poles, D-Curve/Thermal Magnetic Trip
- CP#:
- Item#: S803S-D63
- Mfr#: S803S-D63
- UPC: 804325462792
- Fast breaking time
- IEC current limiting
- Multi-function terminals
- Finger safe and multi-function terminals, ring tongue compatible
- Auxiliary contact
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The S800 high performance MCB offers a compact solution to circuit protection. The S800 devices are IEC tested current limiting and DIN rail mounted. The S800 is available with application specific trip characteristics to provide maximum circuit protection. The breakers offer thermal magnetic trip protection according to B, C, D and K characteristics. For the worldwide market, the breakers carry CSA, IEC, CE and many other agency approvals.
ABB System pro M compact® Miniature Circuit Breaker, High Performance, Series: S800S-D, 400/690 VAC, 63 A, 6.4 W Power, 50/60 Hz Frequency, 50 kA Interrupt, D-Curve/Thermal Magnetic Trip, 3 Pole, Screw Connection, DIN Rail Mounting, -25 to 60 deg C, 88.5 mm L x 79.5 mm W x 95 mm H Dimensions, Light Gray
SPECIFICATIONS
| Color | : | Light Gray |
| Connection Type | : | Screw |
| Dimensions | : | 88.5 mm L x 79.5 mm W x 95 mm H |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | DIN Rail |
| Power Rating | : | 6.4 W |
| Series | : | S800S-D |
| Temperature Rating | : | -25 to 60 deg C |
| Type | : | High Performance |
| Voltage Rating | : | 400/690 VAC |
| Amperage Rating | : | 63 A |
| Interrupt Rating | : | 50 kA |
| Number of Poles | : | 3 |
| Trip Type | : | D-Curve/Thermal Magnetic |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1024/ABB_S803S-D63_Specification_Sheet.pdf
