S203UP-K5

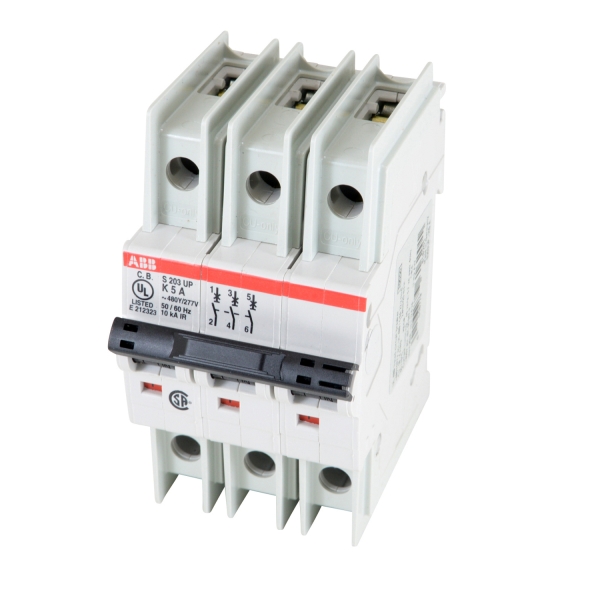

ABB S203UP-K5 S200 Miniature Circuit Breaker, 277/480 VAC, 5 A, 10 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
- CP#:
- Item#: S203UP-K5
- Mfr#: S203UP-K5
- UPC: 662019169699
- UL current limiting
- Fast breaking time
- Bus connection system
- Wide range of accessories
- Suitable for reverse feed
- Designed for the higher inrush currents during system start of inductive loads: as in motor and transformer applications
- Screw terminal type - Failsafe bi-directional cylinder-lift terminal
- With thermal-magnetic trip device
- Actuator type - Insulation group II, black, sealable
- 8 - 12 A magnetic and 1.05 - 1.2 A thermal
- K trip curve
- 18 - 4 AWG conductor, 18 - 8 AWG busbar
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The S200U AND S200UP devices are UL 489 tested current limiting and DIN rail mounted. The S200U and S200UP is available with application-specific trip characteristics toprovide maximum circuit protection.
ABB Miniature Circuit Breaker, Series: S200, 277/480 VAC, 5 A, 5.025 W Power, 50/60 Hz Frequency, 10 kA Interrupt, Thermal/Magnetic Trip, 8 to 12 A Trip, 3 Pole, Toggle Actuator, Screw Connection, 18 to 4 AWG, 18 to 8 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 100 mm H x 52.5 mm W x 71 mm D Dimensions, Light Gray
SPECIFICATIONS
| Actuator Type | : | Toggle |
| Color | : | Light Gray |
| Connection Type | : | Screw |
| Dimensions | : | 100 mm H x 52.5 mm W x 71 mm D |
| Enclosure Type | : | IP20 |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | DIN Rail |
| Power Rating | : | 5.025 W |
| Series | : | S200 |
| Temperature Rating | : | -25 to 55 deg C |
| Trip Range | : | 8 to 12 A |
| Wire Size | : | 18 to 4 AWG, 18 to 8 AWG |
| Voltage Rating | : | 277/480 VAC |
| Amperage Rating | : | 5 |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 3 |
| Trip Type | : | Thermal/Magnetic |
DOCUMENTS
-
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ABB_S202U_K4_Brochure.pdf
