S203UP-K1

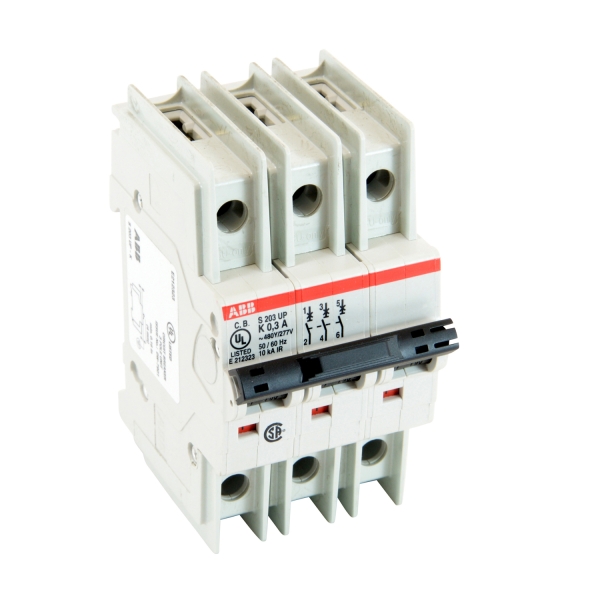

ABB SU203M-K1 SU200M High Performance Miniature Circuit Breaker, 277/480Y VAC, 48/96 VDC, 1 A, 10 kA Interrupt, 3 Poles, K-Curve Trip
- CP#:
- Item#: S203UP-K1
- Mfr#: S203UP-K1
- UPC: 662019179698
- Current limiting according to UL 489
- Failsafe bi-directional cylinder-lift terminal
- High performance MCB provides compact supplementary, energy limiting, circuit protection
- Branch circuit protection
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The System pro M compact SU 200 M is the first truly complete compact and modular circuit breaker for both North American and global markets. This proven system offers all of the essential accessories; shunt trips, and auxiliary, and signal contacts. In development of the SU 200 M range, the ability to use existing accessories was a key design requirement. Current accessories can be used with both current MCBs and the new SU 200 M MCB.
ABB Miniature Circuit Breaker, High Performance, Series: SU200M, 277/480Y VAC, 48/96 VDC, 1 A, 50/60 Hz Frequency, 10 kA Interrupt, K-Curve Trip, 3 Pole, 18 to 4 AWG Wire, Class I Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 52.5 mm W x 111 mm H Dimensions, Light Gray
SPECIFICATIONS
| Color | : | Light Gray |
| Dimensions | : | 69 mm L x 52.5 mm W x 111 mm H |
| Enclosure Type | : | IP20/IP40 |
| Frequency Rating | : | 50/60 Hz |
| Insulation Type | : | Class I |
| Mounting Type | : | DIN Rail |
| Series | : | SU200M |
| Temperature Rating | : | -25 to 55 deg C |
| Type | : | High Performance |
| Wire Size | : | 18 to 4 AWG |
| Voltage Rating | : | 277/480Y VAC, 48/96 VDC |
| Amperage Rating | : | 1 A |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 3 |
| Trip Type | : | K-Curve |
