S203U-K60

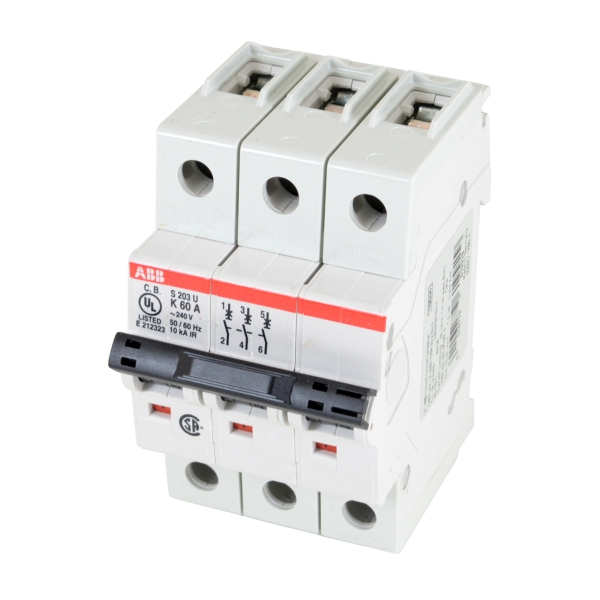

ABB S203U-K60 S200U High Performance Miniature Circuit Breaker, 240 VAC, 60 A, 10 kA Interrupt, 3 Poles, K-Curve/Thermal Magnetic Trip
- CP#:
- Item#: S203U-K60
- Mfr#: S203U-K60
- UPC: 662019167688
- Branch circuit protection
- Finger safe and multi-function terminals
- Auxiliary contact
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The S200 series miniature circuit breaker offers a compact solution for protection requirements. The S200U and S200UP devices are UL 489 tested current limiting and DIN rail mounted. The S200U and S200UP is available with application-specific trip characteristics to provide maximum circuit protection. The breakers offer thermal-magnetic trip protection according to K and Z characteristics.
ABB Miniature Circuit Breaker, High Performance, Series: S200U, 240 VAC, 60 A, 50/60 Hz Frequency, 10 kA Interrupt, K-Curve/Thermal Magnetic Trip, 3 Pole, Screw Connection, 18 to 4 AWG Wire, Class I Insulation, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 71 mm L x 52.5 mm W x 92 mm H Dimensions, Light Gray
SPECIFICATIONS
| Color | : | Light Gray |
| Connection Type | : | Screw |
| Dimensions | : | 71 mm L x 52.5 mm W x 92 mm H |
| Enclosure Type | : | IP20 |
| Frequency Rating | : | 50/60 Hz |
| Insulation Type | : | Class I |
| Mounting Type | : | DIN Rail |
| Series | : | S200U |
| Temperature Rating | : | -25 to 55 deg C |
| Type | : | High Performance |
| Wire Size | : | 18 to 4 AWG |
| Voltage Rating | : | 240 VAC |
| Amperage Rating | : | 60 A |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 3 |
| Trip Type | : | K-Curve/Thermal Magnetic |
