S203-K10

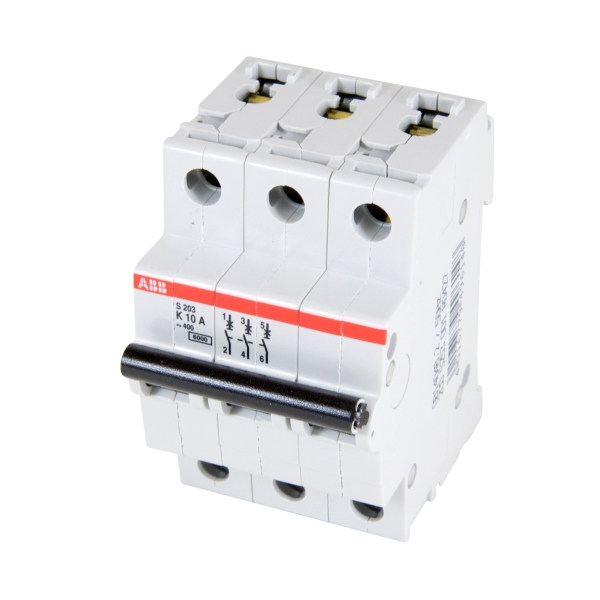

ABB System pro M compact® S203-K10 S200 High Performance Miniature Circuit Breaker, 277/480Y VAC, 10 A, 6 kA Interrupt, 3 Poles, K-Curve/Electromechanic/Thermal Magnetic Trip
- CP#:
- Item#: S203-K10
- Mfr#: S203-K10
- UPC: 662019171487
- High performance MCB provides compact supplementary, energy limiting and circuit protection
- Finger-safe and multi-function terminals
- Fast breaking time
- Bus connection system
- Suitable for reverse feed applications
- Fail-Safe® bi-directional cylinder lift screw terminal
- With thermal magnetic trip device
- Actuator type - Insulation group II, black, sealable
- 8 to 12 A magnetic and 1.05 to 1.2 A thermal
- 18 to 4 AWG conductor, 18 to 8 AWG busbar
- Molded plastic
- Auxiliary contact
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
System pro M compact® S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B, C, D, K, Z), configurations (1P, 1P+N, 2P, 3P, 3P+N, 4P), breaking capacities (up to 6 kA at 230/400 VAC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 and CSA 22.2 No. 235, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
ABB Miniature Circuit Breaker, High Performance, Series: S200, 277/480Y VAC, 10 A, 4.2 W Power, 50/60 Hz Frequency, 6 kA Interrupt, K-Curve/Electromechanic/Thermal Magnetic Trip, 1.05 to 1.2 A, 8 to 12 A Trip, 3 Pole, Toggle Actuator, Screw Connection, 18 to 4 AWG, 18 to 8 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 52.5 mm W x 88 mm H Dimensions, Plastic, Light Gray
SPECIFICATIONS
| Actuator Type | : | Toggle |
| Color | : | Light Gray |
| Connection Type | : | Screw |
| Dimensions | : | 69 mm L x 52.5 mm W x 88 mm H |
| Enclosure Type | : | IP20 |
| Frequency Rating | : | 50/60 Hz |
| Material | : | Plastic |
| Mounting Type | : | DIN Rail |
| Power Rating | : | 4.2 W |
| Series | : | S200 |
| Temperature Rating | : | -25 to 55 deg C |
| Trip Range | : | 1.05 to 1.2 A, 8 to 12 A |
| Type | : | High Performance |
| Wire Size | : | 18 to 4 AWG, 18 to 8 AWG |
| Voltage Rating | : | 277/480Y VAC |
| Amperage Rating | : | 10 |
| Interrupt Rating | : | 6 kA |
| Number of Poles | : | 3 |
| Trip Type | : | K-Curve/Electromechanic/Thermal Magnetic |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ABB_S201_C63_Catalog_1.pdf
