S202UP-K15

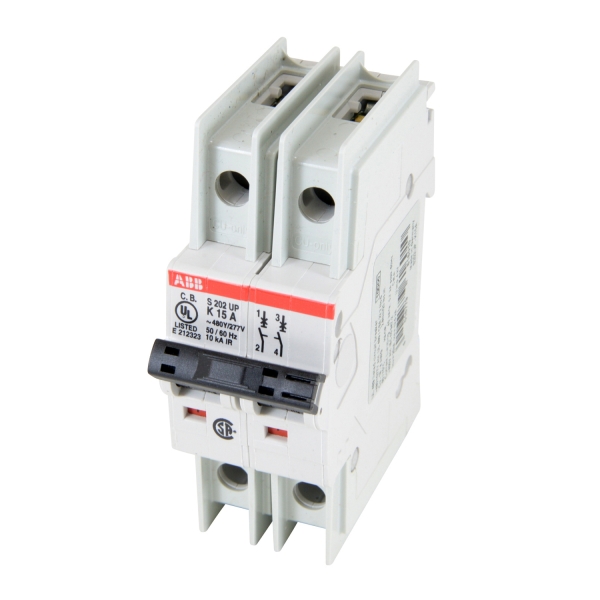

ABB S202UP-K15 S200UP High Performance Miniature Circuit Breaker, 277/480Y VAC, 15 A, 10 kA Interrupt, 2 Poles, K-Curve/Electromechanic/Thermal Magnetic Trip
- CP#:
- Item#: S202UP-K15
- Mfr#: S202UP-K15
- UPC: 662019170473
- Branch circuit protection
- Finger safe and multi-function terminals
- Current limiting
- Fast breaking time
- Bus connection system
- Suitable for reverse feed applications
- For use with inductive loads
- Failsafe bi-directional cylinder-lift screw terminal
- With thermal-magnetic trip device
- Actuator type insulation group II, black, sealable
- 8 to 12 A magnetic and 1.05 to 1.2 A thermal
- 18 to 4 AWG conductor, 18 to 8 AWG busbar
- Auxiliary contact
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB Miniature Circuit Breaker, High Performance, Series: S200UP, 277/480Y VAC, 15 A, 3.69 W Power, 50/60 Hz Frequency, 10 kA Interrupt, K-Curve/Electromechanic/Thermal Magnetic Trip, 8 to 12 A, 1.05 to 1.2 A Trip, 2 Pole, Toggle Actuator, Screw Connection, 18 to 4 AWG, 18 to 8 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 71 mm L x 35 mm W x 100 mm H Dimensions, Light Gray
SPECIFICATIONS
| Actuator Type | : | Toggle |
| Color | : | Light Gray |
| Connection Type | : | Screw |
| Dimensions | : | 71 mm L x 35 mm W x 100 mm H |
| Enclosure Type | : | IP20 |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | DIN Rail |
| Power Rating | : | 3.69 W |
| Series | : | S200UP |
| Temperature Rating | : | -25 to 55 deg C |
| Trip Range | : | 8 to 12 A, 1.05 to 1.2 A |
| Type | : | High Performance |
| Wire Size | : | 18 to 4 AWG, 18 to 8 AWG |
| Voltage Rating | : | 277/480Y VAC |
| Amperage Rating | : | 15 |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 2 |
| Trip Type | : | K-Curve/Electromechanic/Thermal Magnetic |
DOCUMENTS
-
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ABB_S202UP_K15_Brochure.pdf
