S202U-K2

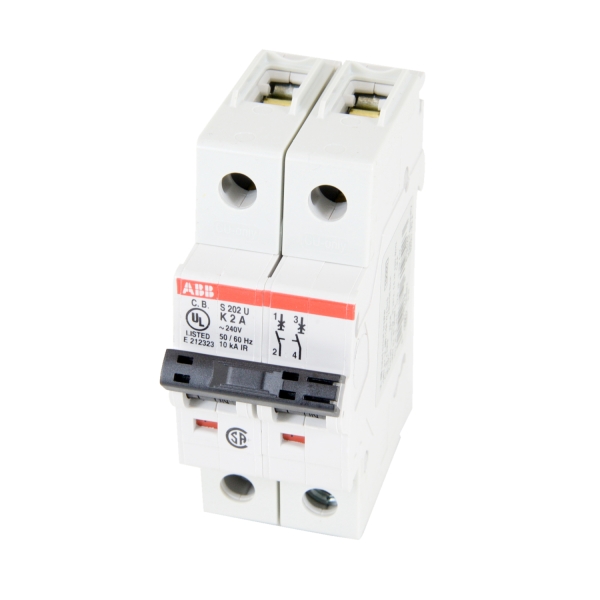

ABB S202U-K2 S200U High Performance Miniature Circuit Breaker, 277/480Y VAC to 48/96 VDC, 2 A, 10 kA Interrupt, 2 Poles, K-Curve Trip
- CP#:
- Item#: S202U-K2
- Mfr#: S202U-K2
- UPC: 662019170343
- Finger safe and multi-function terminals
- Fail-safe bi-directional cylinder-lift terminal
- High performance MCB provides compact supplementary, energy limiting, circuit protection
- Branch circuit protection
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The miniature circuit breaker SU 200 M is ABB solution for UL 489 branch circuit protection up to 480 Y/277 V AC and 96 VDC. This circuit breaker is an all round device for AC and DC applications for universal use in North American and global markets due to its approvals acc. To the international standards UL, CSA and IEC. Moreover, SU 200 M is fully compatible with System pro M compact® UL 489 accessories.
ABB Miniature Circuit Breaker, High Performance, Series: S200U, 277/480Y VAC to 48/96 VDC, 2 A, 50/60 Hz Frequency, 10 kA Interrupt, K-Curve Trip, 2 Pole, 18 to 4 AWG Wire, Class I Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 35 mm W x 111 mm H Dimensions, Light Gray
SPECIFICATIONS
| Color | : | Light Gray |
| Dimensions | : | 69 mm L x 35 mm W x 111 mm H |
| Enclosure Type | : | IP20/IP40 |
| Frequency Rating | : | 50/60 Hz |
| Insulation Type | : | Class I |
| Mounting Type | : | DIN Rail |
| Series | : | S200U |
| Temperature Rating | : | -25 to 55 deg C |
| Type | : | High Performance |
| Wire Size | : | 18 to 4 AWG |
| Voltage Rating | : | 277/480Y VAC to 48/96 VDC |
| Amperage Rating | : | 2 A |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 2 |
| Trip Type | : | K-Curve |
