S202U-K10

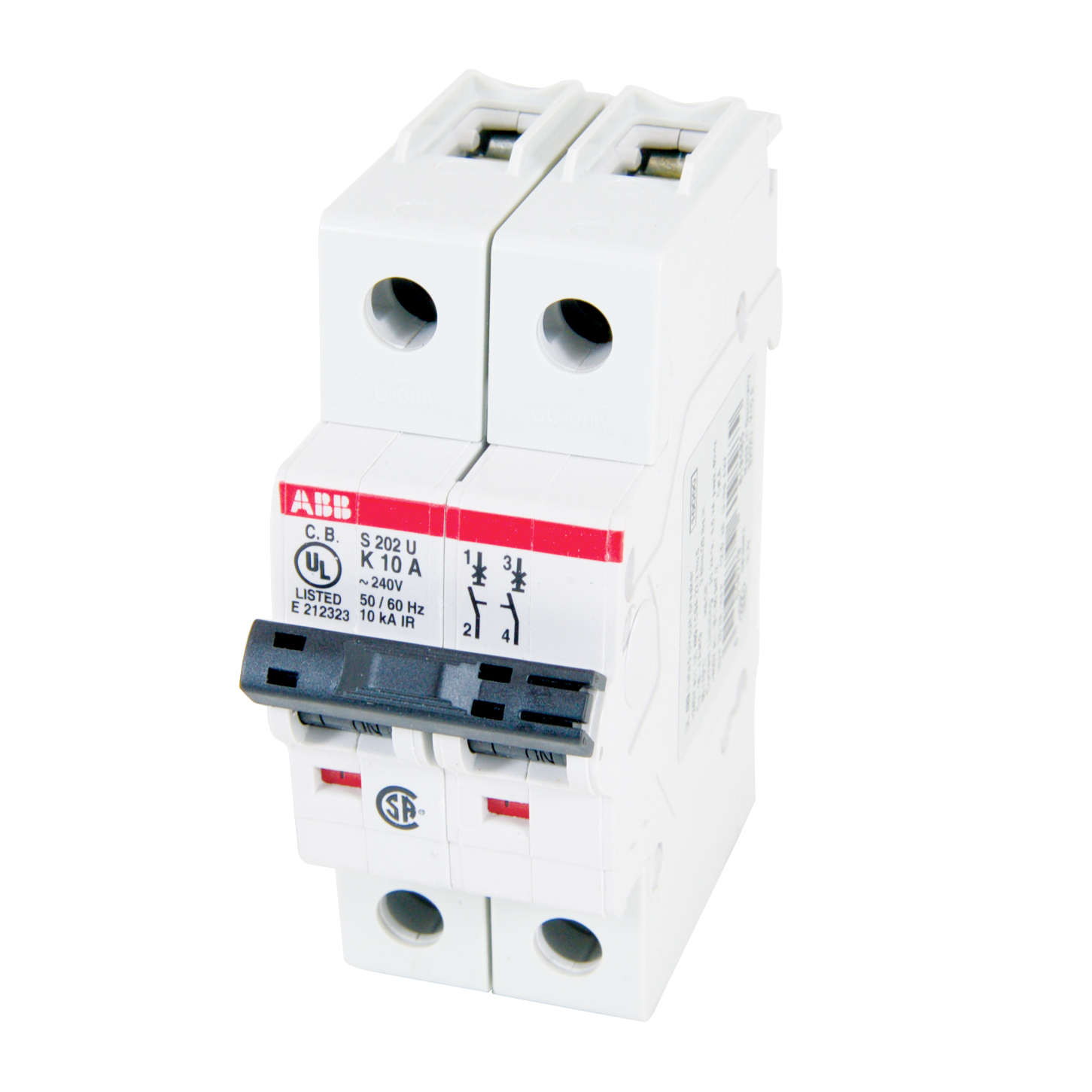

ABB S202U-K10 S200U High Performance Miniature Circuit Breaker, 240 VAC, 10 A, 10 kA Interrupt, 2 Poles, K-Curve/Thermal Magnetic Trip
- CP#:
- Item#: S202U-K10
- Mfr#: S202U-K10
- UPC: 662019160061
- Branch circuit protection
- Current limiting
- Fast breaking time
- Bus connection system
- Suitable for reverse feed applications
- For use with inductive loads
- Fail-Safe® bi-directional cylinder lift screw terminal
- With thermal magnetic trip device
- Actuator type - Insulation group II, black, sealable
- Finger-safe and multi-function terminals
- 8 to 12 A magnetic and 1.05 to 1.2 A thermal
- 18 to 4 AWG conductor, 18 to 8 AWG busbar
- Auxiliary contact
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB Miniature Circuit Breaker, High Performance, Series: S200U, 240 VAC, 10 A, 3.8 W Power, 50/60 Hz Frequency, 10 kA Interrupt, K-Curve/Thermal Magnetic Trip, 1.05 to 1.2 A, 8 to 12 A Trip, 2 Pole, 1 ph, Toggle Actuator, Screw Connection, 18 to 4 AWG, 18 to 8 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 71 mm L x 35 mm W x 92 mm H Dimensions, Light Gray
SPECIFICATIONS
| Actuator Type | : | Toggle |
| Color | : | Light Gray |
| Connection Type | : | Screw |
| Dimensions | : | 71 mm L x 35 mm W x 92 mm H |
| Enclosure Type | : | IP20 |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | DIN Rail |
| Phase | : | 1 |
| Power Rating | : | 3.8 W |
| Series | : | S200U |
| Temperature Rating | : | -25 to 55 deg C |
| Trip Range | : | 1.05 to 1.2 A, 8 to 12 A |
| Type | : | High Performance |
| Wire Size | : | 18 to 4 AWG, 18 to 8 AWG |
| Voltage Rating | : | 240 VAC |
| Amperage Rating | : | 10 |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 2 |
| Trip Type | : | K-Curve/Thermal Magnetic |
