S201UDC-K6

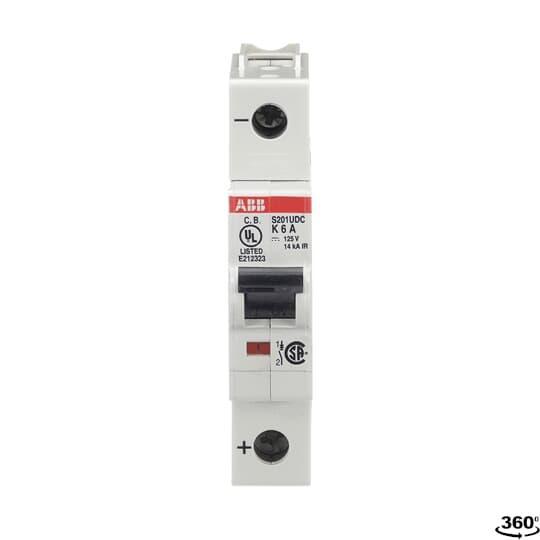

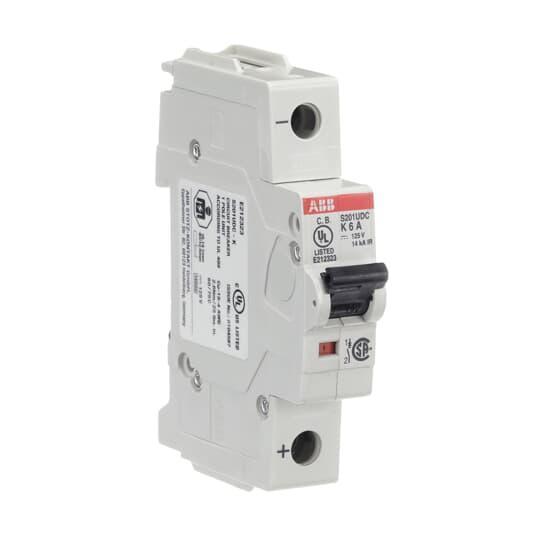

ABB System pro M compact® S201UDC-K6 S200UDC High Performance Miniature Circuit Breaker, 60/125 VDC, 6 A, 14 kA Interrupt, 1 Poles, K-Curve/Electromechanic/Thermal Magnetic Trip
- CP#:
- Item#: S201UDC-K6
- Mfr#: S201UDC-K6
- UPC: 804325569705
- High performance MCB provides compact supplementary, energy limiting and circuit protection
- Finger-safe and multi-function terminals
- Electromechanic tripping mechanism for short circuit protection

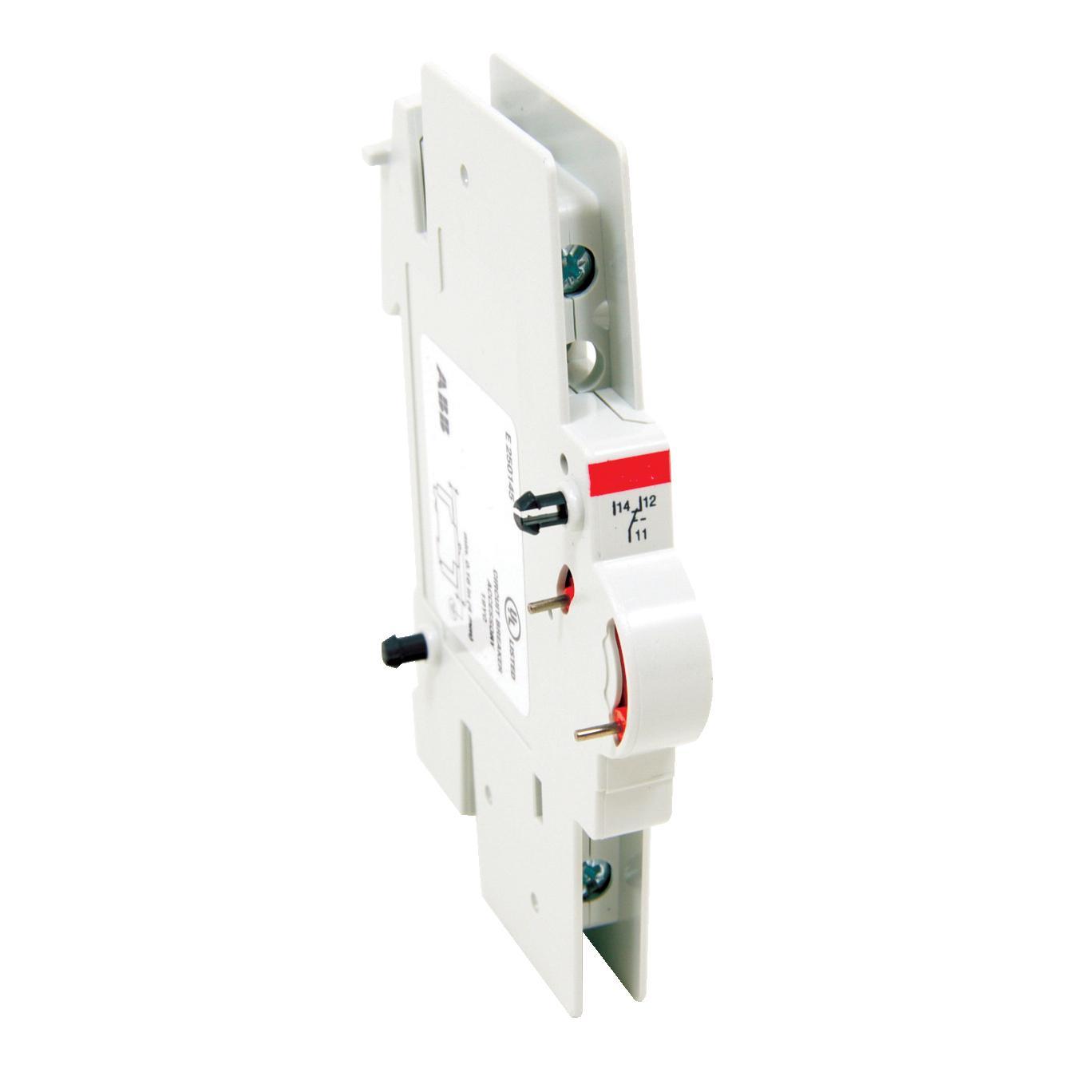

- Auxiliary contact
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
System pro M compact® S200UDC current limiting miniature circuit breakers are specially designed for DC applications in the scope of UL489. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (K, Z), configurations (1P, 2P) and rated currents (up to 63A).The short-circuit current rating SCCR acc. UL489 is 14 kA. The S200UDC is suitable for DC voltages up to 125 VDC (2-pole). All MCBs of the product range S200UDC comply with UL489, allowing the use for commercial and industrial applications.
ABB Miniature Circuit Breaker, High Performance, Series: S200UDC, 60/125 VDC, 6 A, 50/60 Hz Frequency, 14 kA Interrupt, K-Curve/Electromechanic/Thermal Magnetic Trip, 1 Pole, Screw Connection, 18 to 4 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 71 mm L x 17.5 mm W x 92 mm H Dimensions
SPECIFICATIONS
| Connection Type | : | Screw |
| Dimensions | : | 71 mm L x 17.5 mm W x 92 mm H |
| Enclosure Type | : | IP20 |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | DIN Rail |
| Series | : | S200UDC |
| Temperature Rating | : | -25 to 55 deg C |
| Type | : | High Performance |
| Wire Size | : | 18 to 4 AWG |
| Voltage Rating | : | 60/125 VDC |
| Amperage Rating | : | 6 A |
| Interrupt Rating | : | 14 kA |
| Number of Poles | : | 1 |
| Trip Type | : | K-Curve/Electromechanic/Thermal Magnetic |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1024/ABB_S201UDC-K6_Specification_Sheet.pdf
