S201U-K40

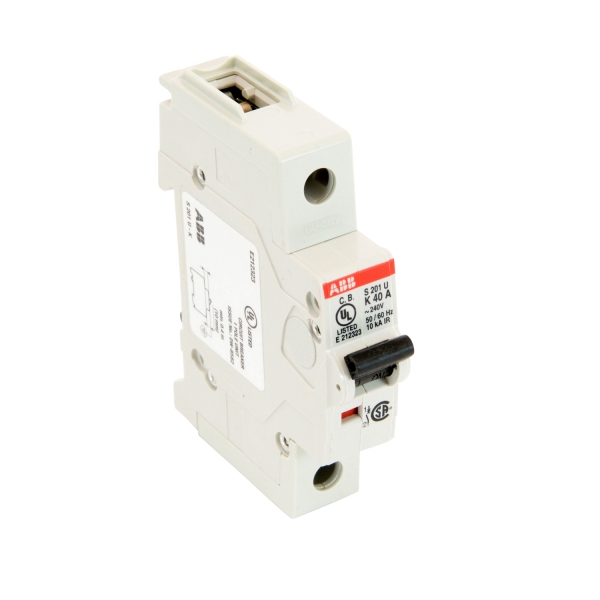

ABB S201U-K40 S200 Miniature Circuit Breaker, 240 VAC, 40 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
- CP#:
- Item#: S201U-K40
- Mfr#: S201U-K40
- UPC: 662019169514
- UL current limiting
- Fast breaking time
- Bus connection system
- Wide range of accessories
- Suitable for reverse feed
- Designed for the higher inrush currents during system start of inductive loads: as in motor and transformer applications
- For use with inductive loads
- Screw terminal type - Failsafe bi-directional cylinder-lift terminal
- With thermal-magnetic trip device
- Actuator type - Insulation group II, black, sealable
- K trip curve
- 8 - 12 A magnetic and 1.05 - 1.2 A thermal
- 18 - 4 AWG conductor, 18 - 8 AWG busbar
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The S200U AND S200UP devices are UL 489 tested current limiting and DIN rail mounted. The S200U and S200UP is available with application-specific trip characteristics toprovide maximum circuit protection.
ABB Miniature Circuit Breaker, Series: S200, 240 VAC, 40 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal/Magnetic Trip, 8 to 12 A Trip, 1 Pole, 1 ph, Toggle Actuator, Screw Connection, 18 to 4 AWG, 18 to 8 AWG Wire, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 17.5 mm W x 71 mm D x 92 mm H Dimensions, Light Gray
SPECIFICATIONS
| Actuator Type | : | Toggle |
| Color | : | Light Gray |
| Connection Type | : | Screw |
| Dimensions | : | 17.5 mm W x 71 mm D x 92 mm H |
| Enclosure Type | : | IP20 |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | DIN Rail |
| Phase | : | 1 |
| Series | : | S200 |
| Temperature Rating | : | -25 to 55 deg C |
| Trip Range | : | 8 to 12 A |
| Wire Size | : | 18 to 4 AWG, 18 to 8 AWG |
| Voltage Rating | : | 240 VAC |
| Amperage Rating | : | 40 |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 1 |
| Trip Type | : | Thermal/Magnetic |
DOCUMENTS
-
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ABB_S201U_K10_Brochure.pdf
