S201U-K25

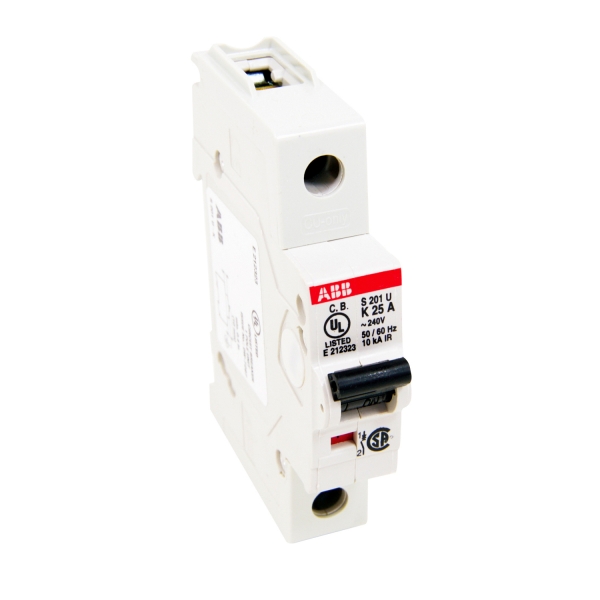

ABB System pro M compact® S201U-K25 S200U High Performance Miniature Circuit Breaker, 240 VAC, 25 A, 10 kA Interrupt, 1 Poles, K-Curve/Thermal Magnetic Trip

  • Item#: S201U-K25
  • Mfr#: S201U-K25
  • UPC: 662019169460
  • Branch circuit protection
  • Finger safe and multi-function terminals
  • Auxiliary contact
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

ABB Miniature Circuit Breaker, High Performance, Series: S200U, 240 VAC, 25 A, 50/60 Hz Frequency, 10 kA Interrupt, K-Curve/Thermal Magnetic Trip, 1 Pole, Screw Connection, 18 to 4 AWG Wire, Class I Insulation, IP20 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 71 mm L x 17.5 mm W x 92 mm H Dimensions

SPECIFICATIONS

Connection Type      :      Screw
Dimensions      :      71 mm L x 17.5 mm W x 92 mm H
Enclosure Type      :      IP20
Frequency Rating      :      50/60 Hz
Insulation Type      :      Class I
Mounting Type      :      DIN Rail
Series      :      S200U
Temperature Rating      :      -25 to 55 deg C
Type      :      High Performance
Wire Size      :      18 to 4 AWG
Voltage Rating      :      240 VAC
Amperage Rating      :      25 A
Interrupt Rating      :      10 kA
Number of Poles      :      1
Trip Type      :      K-Curve/Thermal Magnetic

DOCUMENTS

  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ABB_S201UDC_K1_6_Catalog.pdf
  • pdf
    Datasheet
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ABB_S201U_K25_Datasheet.pdf
