ABB Robotics IRB 1600-10/1.20
ABB Robotics

ABB Robotics IRB 1600-10/1.20

loading
ABB Robotics
Email Print

IRB 1600-10/1.20

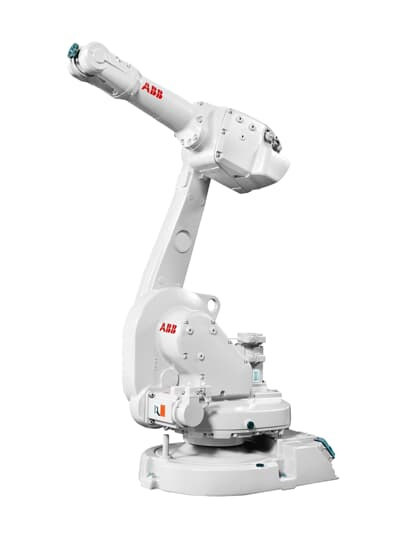

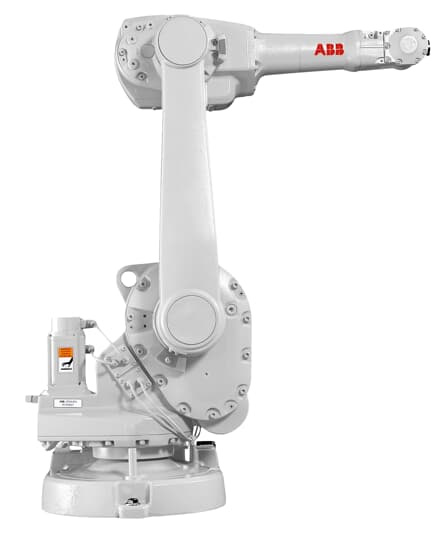

ABB Industrial Robot: IRB 1600-10/1.20

  • Item#: IRB 1600-10/1.20
  • Mfr#: IRB 1600-10/1.20
  • Scalable with ABB 6 axis robots
  • Industrial Robot
  • Offline programming with Robot Studio
  • Easy to setup and operate
  • Option for protection and special design
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Double your throughputThe IRB 1600 has up to 50 percent shorter cycletimes than competing robots in material handling,machine tending and process applications. It speedsup and slows down faster than other robots, savingtime while moving between tasks. This is possibledue to ABB’s patented second generation Quick-Move motion control, combined with the robot’sstrong motors and low friction losses in the spurgears.No more cutting cornersAt high speed, most robots will cut corners. Withthe IRB 1600, the path will be the same regardlessof speed, thanks to the robot’s unique combinationof brains and brawn. Intelligent second generationTrueMove motion control means that ”what-you-program-is-what-you-get”. Add muscle – a heavyand stiff design – low vibrations and low friction –and you have a robot that will deliver consistentlyhigh work piece quality, high yield and few rejects.Outstanding reliabilityThe IRB 1600 offers outstanding reliability, even inthe toughest environments and the most demanding24/7 duty cycles. The entire manipulator is IP 54 classedand sensitive parts are IP 67 classed as standard.The optional protection Foundry Plus offers IP 67,special paint, rust protection and is tailor made fortough foundry environments. The rigid and heavy de-sign combined with spur gears, make the robot ex-tremely robust. Smart collision detection softwarefurther adds to the robot’s outstanding reliability.Easy to integrateMounting is fully flexible: on a shelf, on the wall,tilted or inverted. By choosing the compact short-arm version with the 1.2 m reach, you can even fit theIRB 1600 inside a machine, while ensuring sufficientpayload as the maximum total load is as high as 36kg. Sustainable and healthy Low friction spur gears,and no unnecessary moves due to QuickMove andTrueMove, reduces power consumption down to0.58 kW at max speed, and even less at low speeds.The airborne noise level of just <70 dB (A) secures ahealthy sound environment.

SPECIFICATIONS

Payload      :      10 kg
Reach      :      1.2 m
Repeatability      :      0.06 mm
Controller      :      IRC5
