PSTX370-600-70

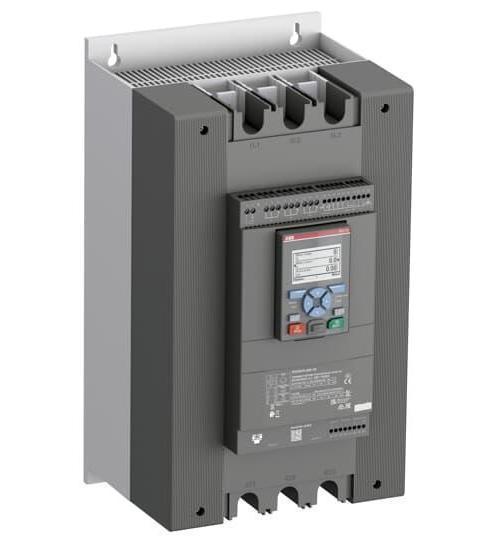

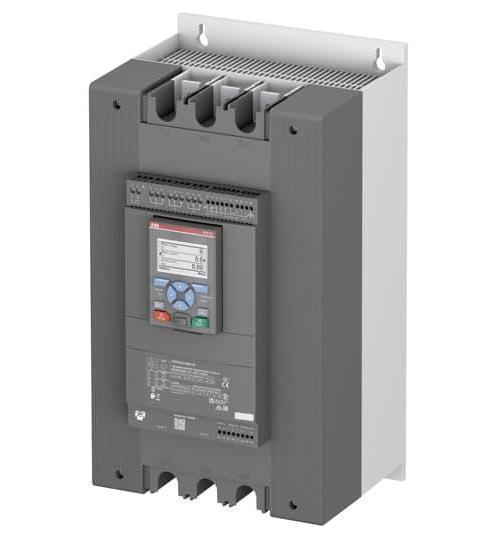

ABB PSTX370-600-70 Advanced Range Inside-the-delta Soft Starter, 100 to 250 VAC V Coil, STOP/START Action, NEMA 1/4X/12/IP00/IP20/IP66 Enclosure
- CP#:
- Item#: PSTX370-600-70
- Mfr#: PSTX370-600-70
- UPC: 888614237131
- Both in-line and inside-delta connection
- Coated circuit boards protecting from dust, moist and corrosive atmosphere
- Graphical display with 15 languages for easy setup and operation
- Built-in bypass for energy saving and easy installation
- Built-in Modbus RTU for monitoring and control
- Support for all major communication protocols
- Analog output for measurement of current, voltage, power factor and more
- 110 kW at 230 V, 200 kW at 400 V, 257 kW at 500 V in-line connection
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The PSTX combines many years of research and product development with extensive knowledge of application specific requirements and needs. It is our latest advancement in motor control and protection and adds new functionality and increased reliability.
ABB Soft Starter, Advanced Range Inside-the-delta, Series: PSTX, 208 to 600 VAC, 370 A, 50/60 Hz Frequency, 110/200/257 kW Motor, 100 to 250 VAC Coil, 3 ph, In-Line Connection, STOP/START Action, Class 10 Overload Relay, 625 A Full Load, Electronic Control, NEMA 1/4X/12/IP00/IP20/IP66 Enclosure, -25 to 60 deg C Operating, 279 mm L x 258 mm W x 470 mm H Dimensions
SPECIFICATIONS
| Frequency Rating | : | 50/60 Hz |
| Connection Type | : | In-Line |
| Amperage Rating | : | 370 A |
| Type | : | Advanced Range Inside-the-delta |
| Coil Voltage | : | 100 to 250 VAC |
| Enclosure Type | : | NEMA 1/4X/12/IP00/IP20/IP66 |
| Motor Power | : | 110/200/257 kW |
| Control Type | : | Electronic |
| Dimensions | : | 279 mm L x 258 mm W x 470 mm H |
| Full Load Current | : | 625 A |
| Overload Relay | : | Class 10 |
| Phase | : | 3 |
| Operating Temperature | : | -25 to 60 deg C |
| Series | : | PSTX |
| Voltage Rating | : | 208 to 600 VAC |
| Action | : | STOP/START |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/702/ABB_PSTX250_600_70_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/702/ABB_PSTX370_600_70_Specification_Sheet.pdf
