ABB PSR60-600-70
ABB
Email Print

PSR60-600-70

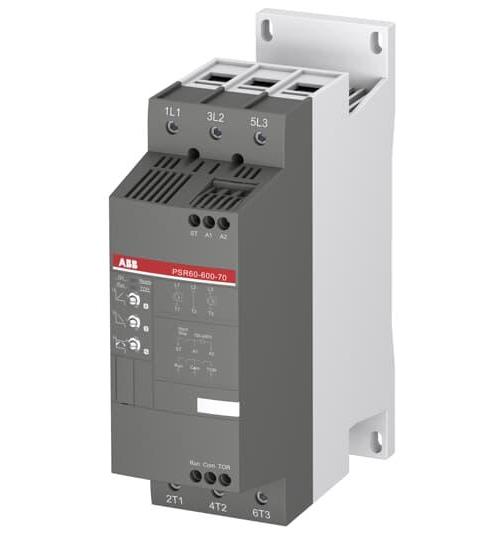

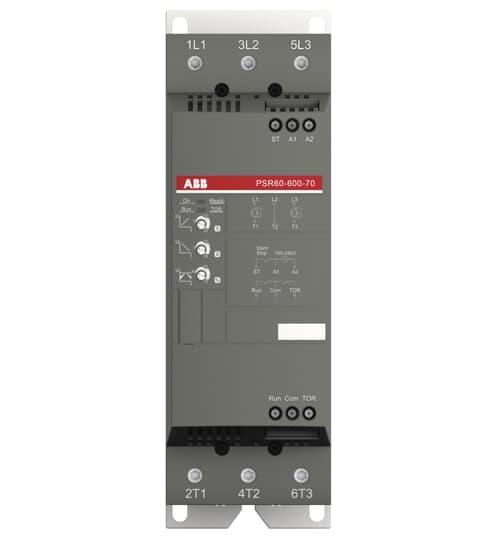

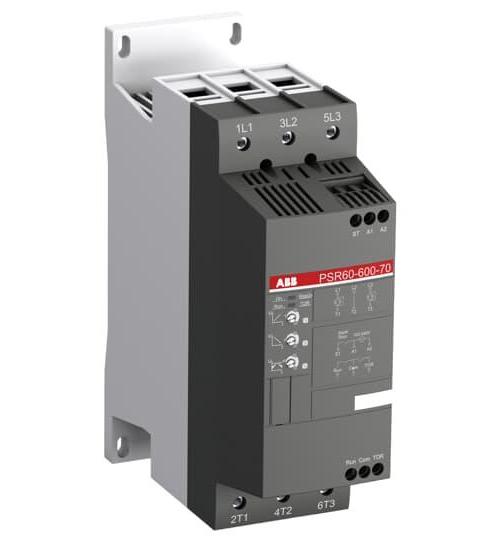

ABB PSR60-600-70 Compact Range Soft Starter, 100 to 250 VAC V Coil, IP10/IP20/Open Enclosure

  • Item#: PSR60-600-70
  • Mfr#: PSR60-600-70
  • UPC: 804325445900
    • Built-in by-pass on all sizes, saving energy and reducing installation time
    • Potentiometer settings
    • Run signal relay on all devices
    • TOR signal relay on PSR25 to PSR105
    • DIN rail mounting on PSR3 to PSR45
    • Connection kits for easy connection with ABB manual motor starters
    • Sophisticated algorithm eliminating the DC component and thereby providing excellent starting performance
    • 15 kW at 230 V, 30 kW at 400 V, 37 kW at 500 V 2 ph motor power rating
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

The PSR range is the most compact of all the ABB softstarter ranges, thereby making it possible to fit many devices into the same enclosure. The system concept with manual motor starters provides a far more compact starting solution than for example a star-delta starter. PSR softstarters from 3 to 45 A are possible to mount on a DIN rail, ensuring quick and easy mounting. Naturally, all sizes can be screw mounted. The set-up of the PSR is easily done and confirmed using the three clearly marked potentiometers on the front. The built-in by-pass on all sizes does not only save energy; it will also ensure the most compact ABB softstarter design and reduce the installation time. Thanks to the reduced heat generation, the softstarter can be mounted inside high IP class enclosures. Even without using torque control, the PSR range is designed to reduce water hammering and will allow a superior stop compared to the direct stop resulting from a star-delta starter or a DOL starter. See the special designed stop ramp with step down voltage below. All PSR softstarter sizes can easily be connected to the corresponding manual motor starters from ABB, using the special designed connection kits. This will both make the mounting and the connection easier and will provide a very compact starting solution containing short circuit and thermal protection, isolation function and soft starter - everything that you need.

ABB Soft Starter, Compact Range, Series: PSR, 208 to 600 VAC, 60 A, 50/60 Hz Frequency, 15/30/37 kW Motor, 100 to 250 VAC Coil, 1 to 20 s Start, 0 to 20 s Stop Timing, 2 ph, In-Line Screw Connection, Class 10 Overload Relay, 59.4 A Full Load, IP10/IP20/Open Enclosure, -25 to 60 deg C Operating, 7.09 in L x 2.76 in W x 8.66 in H Dimensions

SPECIFICATIONS

Frequency Rating      :      50/60 Hz
Connection Type      :      In-Line Screw
Amperage Rating      :      60 A
Type      :      Compact Range
Coil Voltage      :      100 to 250 VAC
Enclosure Type      :      IP10/IP20/Open
Motor Power      :      15/30/37 kW
Dimensions      :      7.09 in L x 2.76 in W x 8.66 in H
Full Load Current      :      59.4 A
Overload Relay      :      Class 10
Phase      :      2
Operating Temperature      :      -25 to 60 deg C
Series      :      PSR
Timing      :      1 to 20 s Start, 0 to 20 s Stop
Voltage Rating      :      208 to 600 VAC

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/143/IDW_DOCUMENT_ef77da71ef826a62eac4965a4aa17e7b13bd9baabd48540ac6e55c21a5493087.pdf
  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/164/IDW_DOCUMENT_bbbed761acf4c9381da1156fd1a06dea8d2bf1b599f08d916083ff281fc0228d.pdf
  • pdf
    Instruction/Installation Manual     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/385/IDW_DOCUMENT_881123620dca13bae93660cad47f76a81e6ff71dd4e6d3868959ef22bbfc340d.pdf
