PSR3-600-11

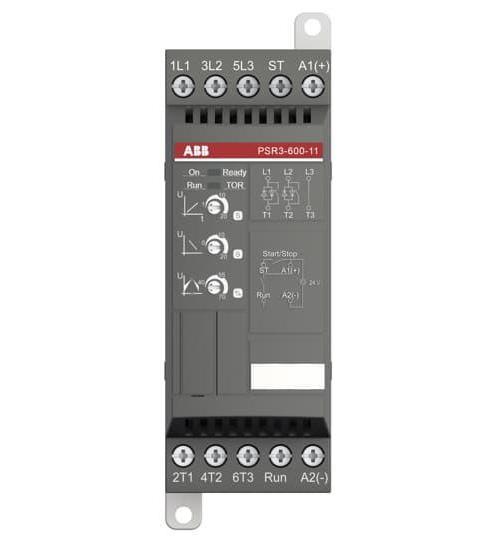

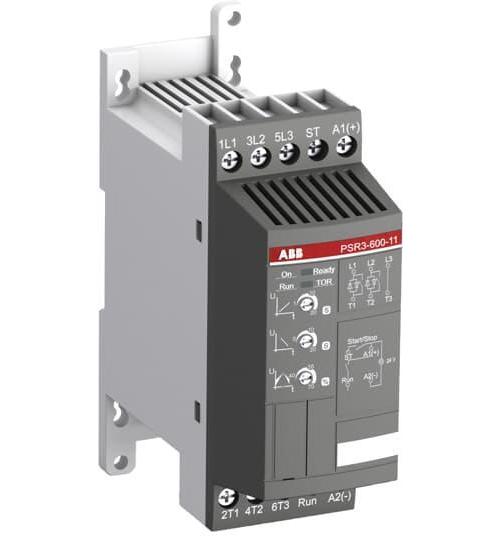

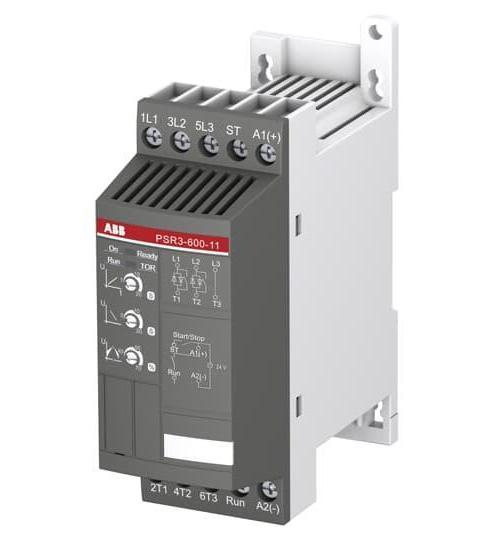

ABB PSR3-600-11 Soft Starter, 24 VAC/VDC V Coil, IP20 Enclosure
- CP#:
- Item#: PSR3-600-11
- Mfr#: PSR3-600-11
- UPC: 888614001053
- 0.75 kW at 230 VAC, 1.5 kW at 400 VAC, 2.2 kW at 500 VAC
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB Soft Starter, Series: PSR, 208 to 600 VAC, 3.9 A, 50/60 Hz Frequency, 0.75/1.5/2.2 kW Motor, 24 VAC/VDC Coil, 1 to 10 s Start/0 to 20 s Stop Timing, 3 ph ph, In-Line Screw Connection, IP20 Enclosure, -25 to 60 deg C Operating, 114 mm L x 45 mm W x 140 mm H Dimensions
SPECIFICATIONS
| Frequency Rating | : | 50/60 Hz |
| Connection Type | : | In-Line Screw |
| Amperage Rating | : | 3.9 A |
| Coil Voltage | : | 24 VAC/VDC |
| Enclosure Type | : | IP20 |
| Motor Power | : | 0.75/1.5/2.2 kW |
| Dimensions | : | 114 mm L x 45 mm W x 140 mm H |
| Phase | : | 3 ph |
| Operating Temperature | : | -25 to 60 deg C |
| Series | : | PSR |
| Timing | : | 1 to 10 s Start/0 to 20 s Stop |
| Voltage Rating | : | 208 to 600 VAC |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/164/IDW_DOCUMENT_bbbed761acf4c9381da1156fd1a06dea8d2bf1b599f08d916083ff281fc0228d.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/219/IDW_DOCUMENT_4043909db8ed1f6534d8e63ac29d285a7657dbac21e3b60d8d09489efbae9601.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/288/IDW_DOCUMENT_3122f72ded956fc4574566ce4b6b00b790c2b60e75bef712d6edb581b6e39a12.pdf
