PSR12-600-11

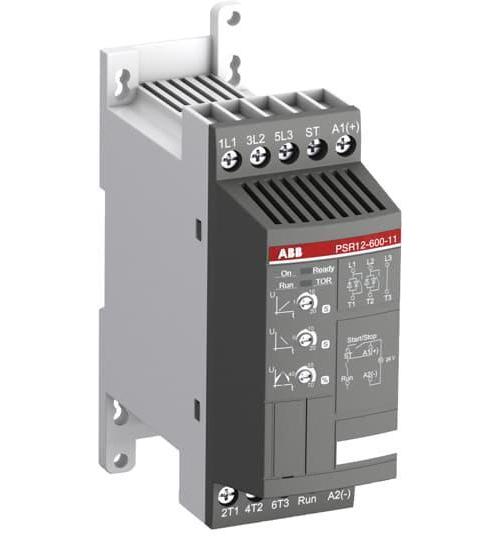

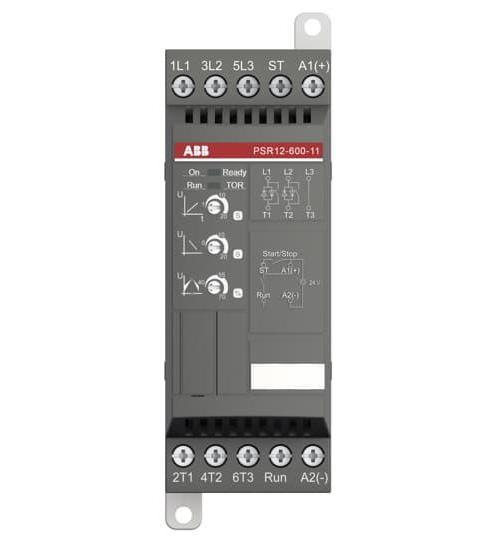

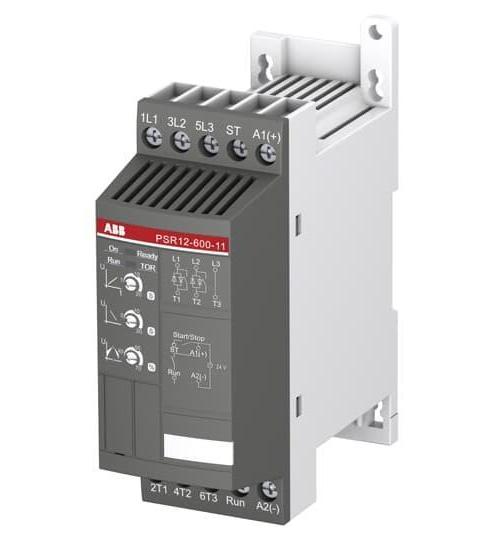

ABB PSR12-600-11 Type PSR Open Style Soft Starter, 24 VAC/VDC Coil, IP20
- CP#:
- Item#: PSR12-600-11
- Mfr#: PSR12-600-11
- UPC: 888614000926
- The psr soft starter range is a simple yet reliable starting solution that utilizes only the most basic of soft starting features soft start and stop
- Easy to install and adjust
- Integrated bypass contact system
- With their compact design, the PSR soft starters are ideal for installation in places where space is limited and where there is a demand for easy installation
- Motor protection with manual motor starter
- PSR has output relays for run and top of ramp
- PSR has LED indicators for on/ready and run/top of ramp
- Set up is made very easy with only 3 potentiometers, for start ramp time, stop ramp time and initial/end voltage level
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
PSR compact range, covers motor currents from 3 to 105 A. It is the latest addition to the soft starter family and has an attractive, compact design. Further, the system concept includes MMS and the soft starters are available for remote control connection using the Field Bus Plug as an accessory. All sizes include a Run signal relay, while from sizes 25 A the PSR Soft starters are also provided with an output signal for TOR (Top Of Ramp), i.e. full voltage. With standard performance the PSR Soft starters handle ten starts per hour. When an auxiliary cooling fan is added, the starting capacity is increased to 20 starts per hour or more.
ABB Soft Starter, Type PSR Open Style, 208 to 600 VAC, 12 A, 50/60 Hz, 5.5 kW, 7-1/2 hp Motor, 24 VAC/VDC Coil, 1 to 20 s Timing, 2 ph Phase, Screw, TF42 Overload Relay, Remote Control, IP20, Starting Modes: Manual, -25 to 60 deg C Operating, 140 mm H x 45 mm W x 114 mm D
SPECIFICATIONS
| Frequency Rating | : | 50/60 Hz |
| Connection Type | : | Screw |
| Amperage Rating | : | 12 A |
| Type | : | Type PSR Open Style |
| Coil Voltage | : | 24 VAC/VDC |
| Enclosure Type | : | IP20 |
| Motor Power | : | 7-1/2 hp |
| Control Type | : | Remote |
| Dimensions | : | 140 mm H x 45 mm W x 114 mm D |
| Overload Relay | : | TF42 |
| Phase | : | 2 ph |
| Operating Temperature | : | -25 to 60 deg C |
| Starting Modes | : | Manual |
| Timing | : | 1 to 20 s |
| Wattage | : | 5.5 kW |
| Voltage Rating | : | 208 to 600 VAC |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/380/ABB_PSR105_600_70_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/453/IDW_DOCUMENT_1518582639729.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/453/IDW_DOCUMENT_1518582713866.pdf
