PSE60-600-70

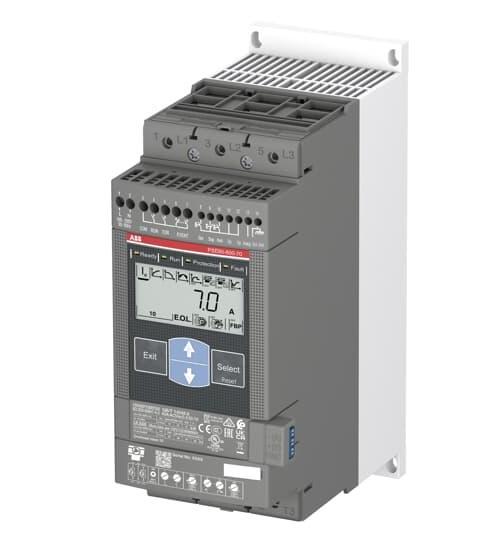

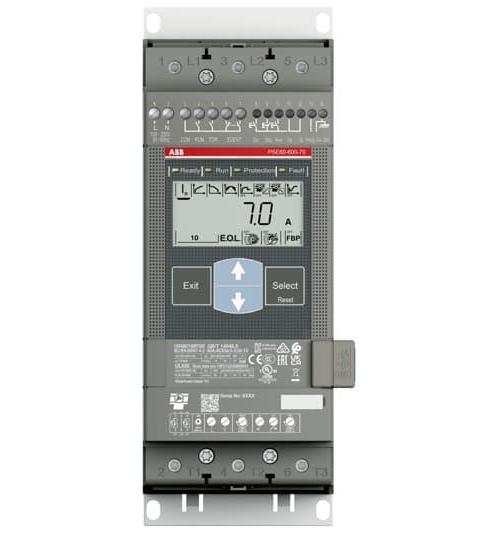

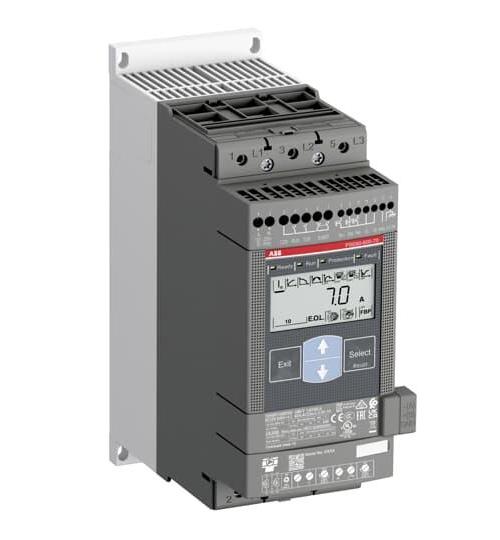

ABB PSE60-600-70 Soft Starter, 100 to 250 VAC/24 VDC V Coil, IP00/Open Enclosure
- CP#:
- Item#: PSE60-600-70
- Mfr#: PSE60-600-70
- UPC: 804325571623
- Open PSE soft starter with maximum rated operational current of 60 A for class 10 normal (N) starting applications and 42 A for class 30 heavy duty (HD) starting applications, and 100 to 250 VAC control voltage
- Size dependent
- Build-in electronic overload protection
- 15 kW at 230 VAC, 30 kW at 400 VAC, 37 kW at 500 VAC
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB Soft Starter, Series: PSE, 208 to 600 VAC, 60 A, 50/60 Hz Frequency, 15/30/37 kW Motor, 100 to 250 VAC/24 VDC Coil, 1 to 30 s Start/0 to 30 s Stop Timing, 2 ph ph, In-Line Screw Connection, IP00/Open Enclosure, 13 to 140 deg F Operating, 185.5 mm L x 90 mm W x 245 mm H Dimensions
SPECIFICATIONS
| Frequency Rating | : | 50/60 Hz |
| Connection Type | : | In-Line Screw |
| Amperage Rating | : | 60 A |
| Coil Voltage | : | 100 to 250 VAC/24 VDC |
| Enclosure Type | : | IP00/Open |
| Motor Power | : | 15/30/37 kW |
| Dimensions | : | 185.5 mm L x 90 mm W x 245 mm H |
| Phase | : | 2 ph |
| Operating Temperature | : | 13 to 140 deg F |
| Series | : | PSE |
| Timing | : | 1 to 30 s Start/0 to 30 s Stop |
| Voltage Rating | : | 208 to 600 VAC |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/136/IDW_DOCUMENT_c1fcdda284d29434eb0a00fc4ec1221cd27308fb45a4aaae89ca82162e518c66.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/164/IDW_DOCUMENT_bbbed761acf4c9381da1156fd1a06dea8d2bf1b599f08d916083ff281fc0228d.pdf -
RoHS https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/557/ABB_PSE18_600_70_RoHS.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/571/IDW_DOCUMENT_3fab1287d20a9ad6c36fe6d5c4b84a64d40a81054cc55640199e8713edfeb227.pdf
