PSE45-600-70

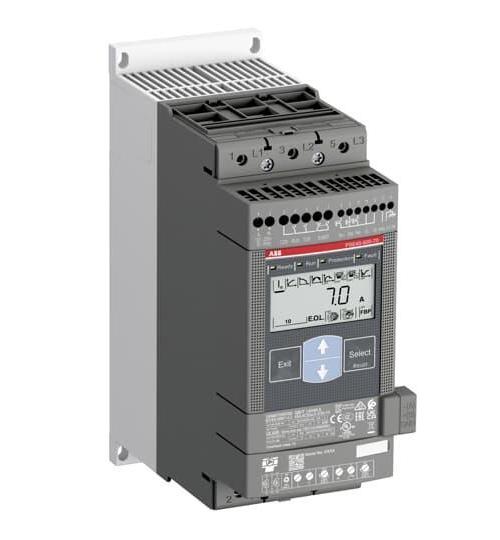

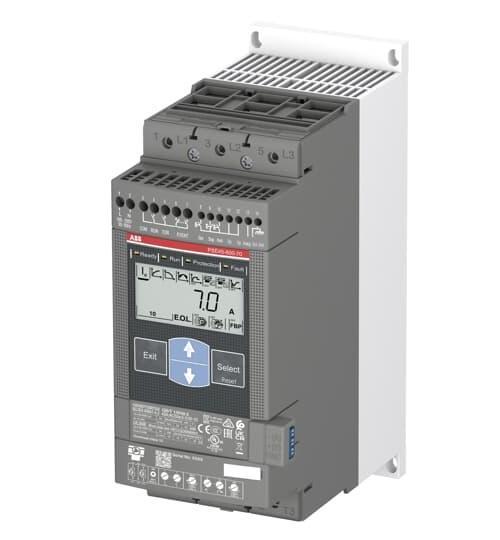

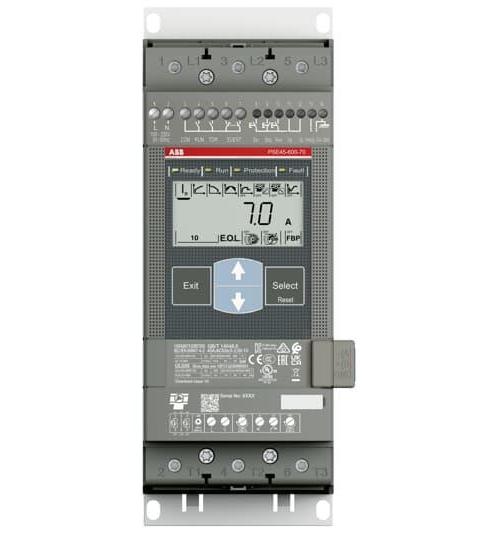

ABB PSE45-600-70 PSE Type PSE Normal Duty Soft Starter, 100/250 VAC V Coil, IP00 Enclosure
- CP#:
- Item#: PSE45-600-70
- Mfr#: PSE45-600-70
- UPC: 804325571616
- PSE is the efficient range of soft starter products in the ABB soft starter family
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The latest addition to ABB's soft starter family is the efficient PSE range. This soft starter has been equipped with all the most important features making it a very efficient choice. During the development process, great focus has been put into making sure that both the soft starter and the process are even more reliable. Furthermore, the soft starter has been equipped with built-in by-pass to reduce wiring and a back-lit display to provide a hassle free and easy setup and monitoring.
ABB, PSE45-600-70, Soft Starter, Type PSE Normal Duty, Series: PSE, 208 to 600 VAC, 45 A, 50/60 Hz Frequency, 22 kW Wattage, 40 hp Motor, 100/250 VAC Coil, 1 to 30 s Timing, 2 ph, Screw Connection, Built-In Electronic Overload Relay, IP00 Enclosure, Starting Modes: Normal, -13 to 140 deg F Operating, 245 mm H x 90 mm W x 185.5 mm D Dimensions
SPECIFICATIONS
| Frequency Rating | : | 50/60 Hz |
| Connection Type | : | Screw |
| Amperage Rating | : | 45 A |
| Type | : | Type PSE Normal Duty |
| Coil Voltage | : | 100/250 VAC |
| Enclosure Type | : | IP00 |
| Motor Power | : | 40 hp |
| Dimensions | : | 245 mm H x 90 mm W x 185.5 mm D |
| Overload Relay | : | Built-In Electronic |
| Phase | : | 2 ph |
| Operating Temperature | : | -13 to 140 deg F |
| Series | : | PSE |
| Starting Modes | : | Normal |
| Timing | : | 1 to 30 s |
| Wattage | : | 22 kW |
| Voltage Rating | : | 208 to 600 VAC |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/255/ABB_PSE45_600_70_Catalog.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/453/IDW_DOCUMENT_1518582713866.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/73/ABB_PSE45_600_70_Datasheet.pdf
