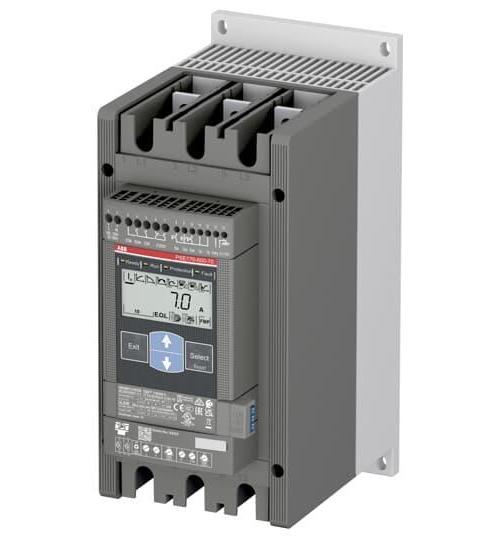

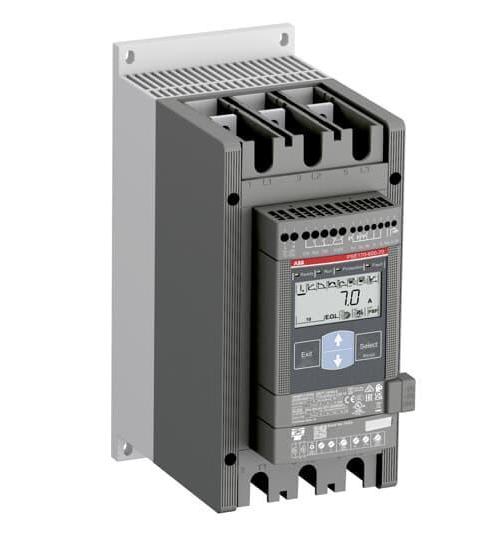

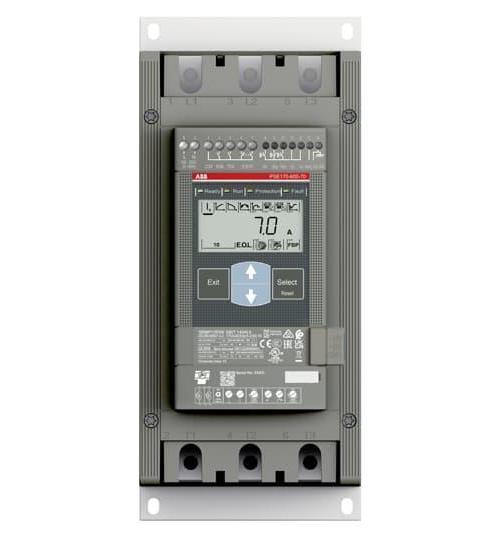

ABB PSE170-600-70 SOFTSTARTER

  • Item#: PSE170-600-70
  • Mfr#: PSE170-600-70
  • UPC: 804325571678
  • Coated circuit boards for reliable operation in harsh environment
  • Built-in by-pass on all sizes, saving energy and reducing installation time
  • User friendly HMI with illuminated language neutral display and 4-button keypad
  • Torque control for excellent control of pumps
  • Motor overload protection with classes 10A, 10, 20 and 30
  • Motor underload protection to detect pumps running dry
  • Locked rotor protection, detecting jammed pumps
  • Kick start to start jammed pumps or conveyor belts
  • Analog output showing operational current, 4 to 20 mA
  • Sophisticated algorithm eliminating the DC component and thereby providing excellent starting performance
  • 45 kW at 230 V, 90 kW at 400 V, 110 kW at 500 V 3 ph motor power rating
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

The PSE softstarter range is the world's first compact softstarters with torque control. This makes the PSE range an excellent choice for pumping applications where water hammering normally is a big problem. With its compact design and advanced functionality, the PSE is also a very efficient solution for other common applications such as compressors and fans. The most important function when stopping pumps is torque control. Since the PSE softstarter is optimized for controlling pumps, this feature is a must. Using by-pass after reaching full voltage will greatly reduce the power loss and thereby save energy. In the PSE softstarter range, the by-pass is built-in on all sizes, which will give the most compact starting solution and reduce the need for wiring during installation. All circuit boards in the new PSE softstarter have a protective coating to ensure a reliable operation even in tough environments like wastewater plants, where corrosive gases and acids may exist. The PSE softstarter is equipped with built-in electronic overload protection, protecting the motor from overheating. Since no additional overload device is needed, our efficient design saves both space, installation time and ultimately money. The analog output terminals can be connected to an analog current meter to show the current during operation and thereby eliminating the need for an additional current transformer. The analog output signal can also be used as an analog input to a PLC. The set-up of the PSE softstarter is done using the four button keypad and the illuminated display, providing a quick and easy set-up. While operating, the display will also provide important status information such as current and voltage. As an option the PSE softstarter can be equipped with an external keypad for easy set-up and monitoring of the unit without opening the enclosure door. The keypad can also be used to copy parameters between different softstarters.

PSR softstarter - The compact range
The PSR softstarter range is a simple yet reliable starting solution that utilizes only the most basic of soft starting features: soft start and stop. It performs well in applications requiring many starts per hour and is perfect for installations where you need to save space.

Main benefits

* Small and compact starting solution
* Can perform many starts per hour
* Reduce energy loss at full speed with built-in bypass.

Main features
* Rated operational current: 3 to 105 A
* Operational voltage: 208–600 V AC
* Control supply voltage: 24 V AC/DC or 100–240 V AC.

SPECIFICATIONS

Amperage Rating      :      170 A
Connection Type      :      In-Line Screw
Dimensions      :      219.5 mm L x 130 mm W x 295 mm H
Frequency Rating      :      50/60 Hz
Full Load Current      :      169 A
Motor Power      :      45/90/110 kW
Operating Temperature      :      -13 to 140 deg F
Overload Relay      :      Class 10
Phase      :      3
Series      :      PSE
Timing      :      1 to 30 s Start, 0 to 30 s Stop
Voltage Rating      :      208 to 600 VAC
Type      :      Efficient Range
Coil Voltage      :      100 to 250 Connection Type
Enclosure Type      :      NEMA 1/4X/12/IP00/IP20/IP66/Open
