OT30F3

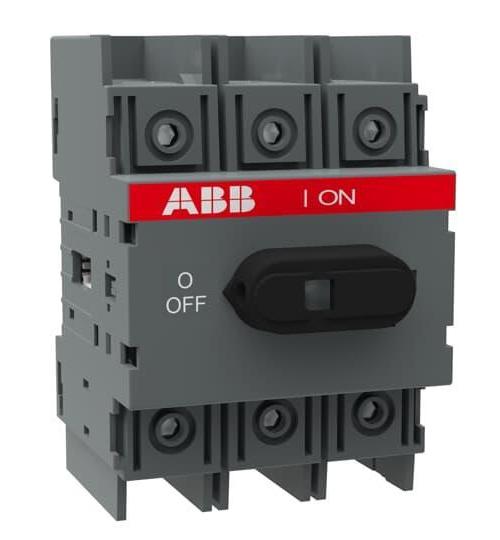

ABB OT30F3 Front Operated Non-Fusible Open Disconnect Switch, 600 VAC, 30 A, 30 hp, 3 Poles
- CP#:
- Item#: OT30F3
- Mfr#: OT30F3
- UPC: 804325415484
- Finger proof - dead front construction plus terminal shrouds reduce the risk of touching live parts, improving safety and reliability of the installation
- Switches can be used equally well with either top or bottom incoming power feed
- Modular construction
- The handle and shaft provide door interlock so that the door cannot be opened when the switch is in the on position
- Handles can be padlocked in the "OFF" position with up to three padlocks
- Welded contact protection
- Clear position indication
- Excellent track resistant material reduces the risk of flash over between phases in even the most severe circumstances
- Quick make, quick brake mechanism
- Fuses are totally isolated in the off position, reducing the risk of shock to authorized personnel
- Superior short circuit protection
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB disconnect switch family includes several different amperage sizes from 16 to 2000 A. the basic construction provides flexibility, safety, and high performance in an extremely compact size. ABB Switch Line is a perfect choice for all switching applications from industrial motor control to construction safety switches.
ABB Disconnect Switch, Front Operated Non-Fusible Open, Series: OT Series, 600 VAC, 30 A, 30 hp, 50 Hz, 3 Poles, 200 kA Short Circuit, IP20, Surface Mount, Screw Terminal, 40 deg C, 70 mm H x 100 mm W x 74 mm D
SPECIFICATIONS
| Mounting Type | : | Surface |
| Frequency Rating | : | 50 Hz |
| Enclosure Type | : | IP20 |
| Type | : | Front Operated Non-Fusible Open |
| Amperage Rating | : | 30 A |
| Horsepower | : | 30 hp |
| Number of Poles | : | 3 |
| Series | : | OT Series |
| Dimensions | : | 70 mm H x 100 mm W x 74 mm D |
| Short Circuit Current Rating | : | 200 kA |
| Terminal Type | : | Screw |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 600 VAC |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1023/ABB_OT30F3_Specification_Sheet.pdf
