MS116-32

ABB MS116-32 MS116 Manual Motor Starter, ON/OFF Action, 3 Poles, IP20 Enclosure

  • Item#: MS116-32
  • Mfr#: MS116-32
  • UPC: 804325613910
    • Trip free handle mechanism
    • Disconnect function
    • 10 hp at 220 to 240 VAC, 20 hp at 440 to 480 VAC, 25 hp at 500 to 600 VAC
    • 15 kW at 400 VAC rated operational power
    • Used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short circuits, overload and phase failures
    • Phase loss sensitivity
    • Adjustable current setting for overload protection
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

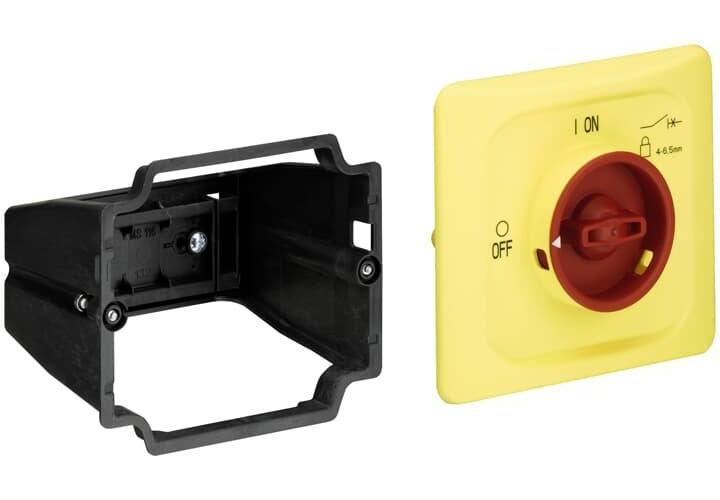

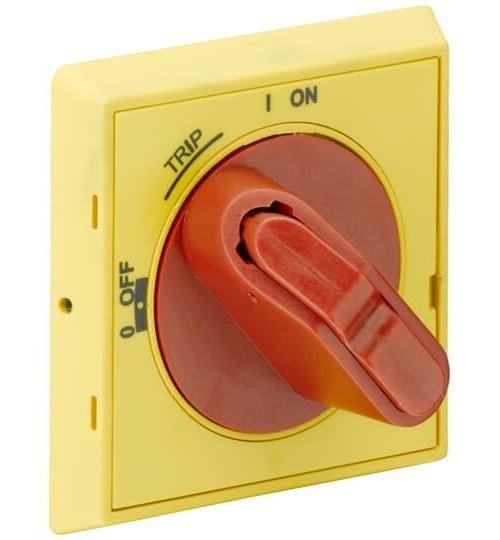

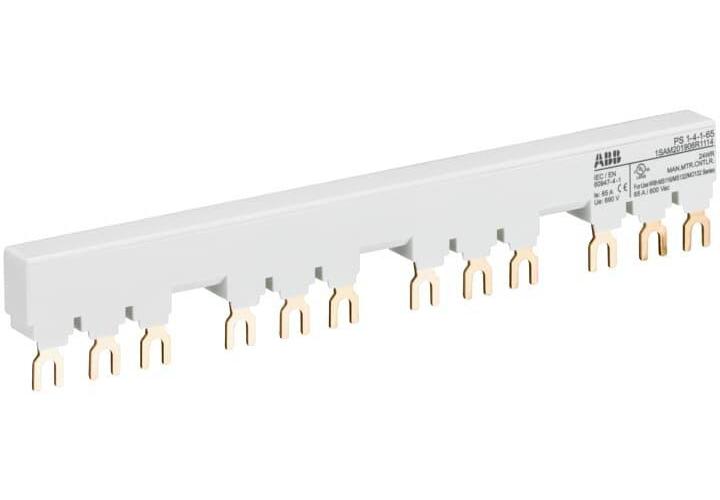

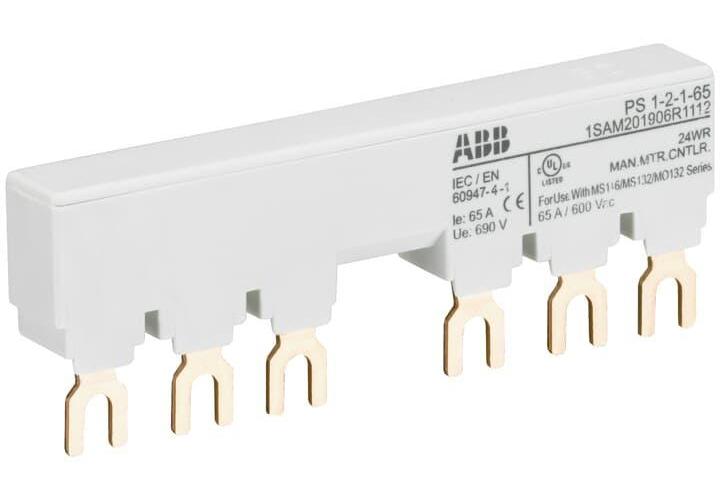

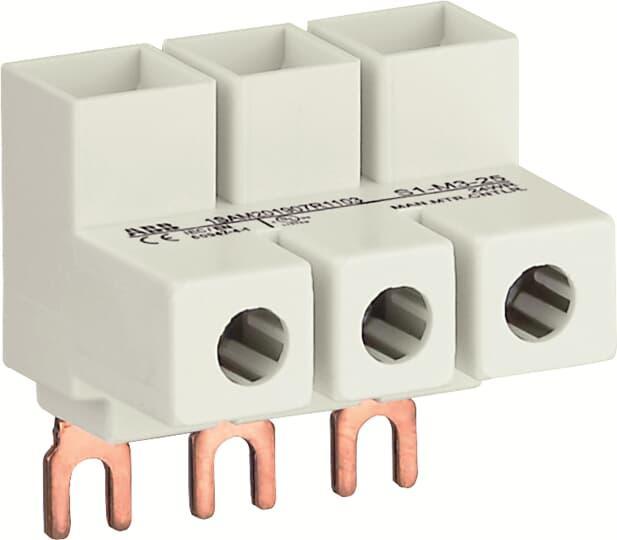

Manual motor starters (MMS) are protection devices for the main circuit. They combine motor control and protection in a single device. MMS are used mainly to switch motors manually ON/OFF and protect them and the installation fuse less against short-circuit, overload and phase failures. Fuse less protection with a manual motor starter saves costs, space and ensures a quick reaction under short-circuit condition, by switching off the motor within milliseconds. MS116 is a compact and economic range for motor protection up to 15.5 kW (400 VAC)/32 A in width of 45 mm. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three and single-phase applications. Auxiliary contacts, signaling contacts, under voltage releases, shunt trips, three phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.

ABB, MS116-32, Manual Motor Starter, Series: MS116, 600 VAC, 32 A, 50/60 Hz Frequency, 15 kW Wattage, 10 hp, 20 hp, 25 hp Motor, 3 Pole, Setting: 25 to 32 A, 10 kA Load, 3 ph, Thread Connection, ON/OFF Action, Rotary Handle Control, IP20 Enclosure, 100000 Cycles Operating Cycles, -25 to 70 deg C Operating, 97.8 mm H x 45 mm W x 86.6 mm D Dimensions

SPECIFICATIONS

Frequency Rating      :      50/60 Hz
Connection Type      :      Thread
Amperage Rating      :      32 A
Number of Poles      :      3
Enclosure Type      :      IP20
Voltage Rating      :      600 VAC
Operating Cycles      :      100000 Cycles
Series      :      MS116
Load Capacity      :      10 kA
Wattage      :      15 kW
Setting      :      25 to 32 A
Phase      :      3 ph
Operating Temperature      :      -25 to 70 deg C
Dimensions      :      97.8 mm H x 45 mm W x 86.6 mm D
Motor Power      :      10 hp, 20 hp, 25 hp
Control Type      :      Rotary Handle
Action      :      ON/OFF

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/293/ABB_MS116_1_0_Catalog.pdf
