MCBH-11

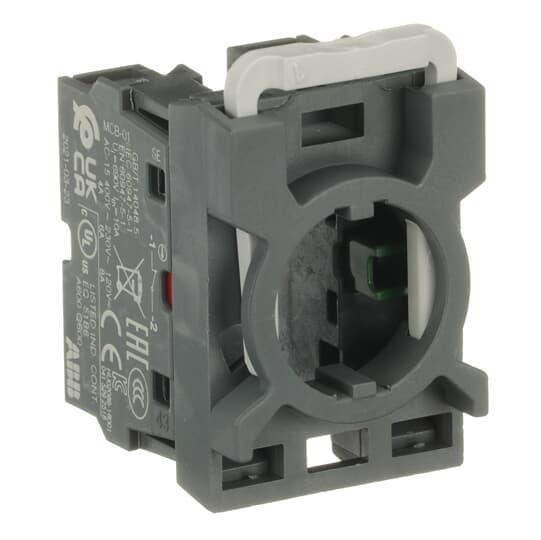

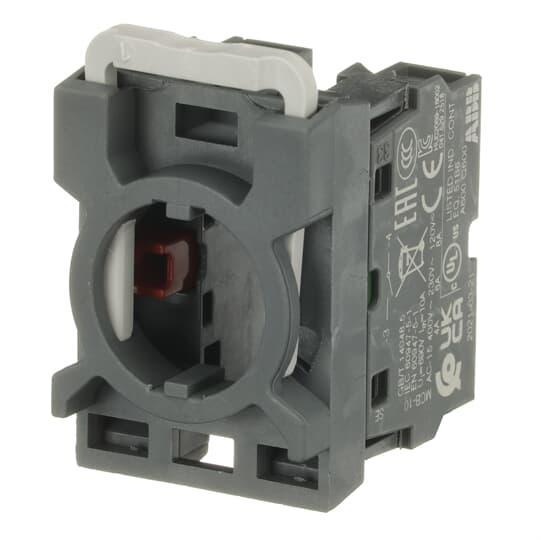

ABB MCBH-11 Modular Non-illuminated Contact Block, 22 mm, 1NC-1NO Contact, 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC Contact, Silver Tipped Contact
- CP#:
- Item#: MCBH-11
- Mfr#: MCBH-11
- UPC: 662019229560
- Quick-mount, quick release contact block holder for fast and easy assembly
- NO and NC contact blocks are color coded for easy identification, green for NO and red for NC
- Wiping action for high reliability
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB Contact Block, Modular Non-illuminated, Series: MCBH, 22 mm Size, 1NC-1NO Contact Configuration, 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC Contact, Silver Tipped Contact, 1 Contacts, Polycarbonate Block, Pushbutton/Selector Switch Operator, NEMA 1/3R/4/4X/12/13 NEMA Rating, IP20 Enclosure, Screw Terminal, Front Mounting, 0.048 mm H x 0.03 mm W x 0.036 mm D Dimensions
SPECIFICATIONS
| Block Material | : | Polycarbonate |
| Contacts | : | 1 |
| Dimensions | : | 0.048 mm H x 0.03 mm W x 0.036 mm D |
| Enclosure Type | : | IP20 |
| Mounting Type | : | Front |
| NEMA Rating | : | NEMA 1/3R/4/4X/12/13 |
| Operator Type | : | Pushbutton/Selector Switch |
| Series | : | MCBH |
| Terminal Type | : | Screw |
| Type | : | Modular Non-illuminated |
| Size | : | 22 mm |
| Contact Configuration | : | 1NC-1NO |
| Contact Rating | : | 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC |
| Contact Material | : | Silver Tipped |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1022/ABB_MCBH-11_Specification_Sheet.pdf
