MCB-02

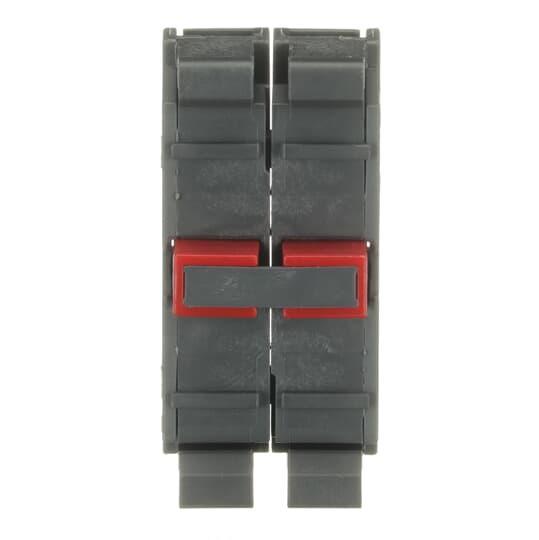

ABB MCB-02 Modular Non-illuminated Contact Block, 22 mm, 2NC Contact, 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC Contact
- CP#:
- Item#: MCB-02
- Mfr#: MCB-02
- UPC: 662019229362
- 230 VAC voltage rating
- 50/60 Hz frequency rating
- 6 A current rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB Contact Block, Modular Non-illuminated, Series: MCB, 22 mm Size, 2NC Contact Configuration, 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC Contact, 2 Contacts, Polycarbonate Block, Pushbutton/Selector Switch Operator, NEMA 1/3R/4/4X/12/13 NEMA Rating, IP10/IP20 Enclosure, Screw Terminal, Front Mounting, 0.044 mm H x 0.02 mm W x 0.028 mm D Dimensions
SPECIFICATIONS
| Block Material | : | Polycarbonate |
| Contacts | : | 2 |
| Dimensions | : | 0.044 mm H x 0.02 mm W x 0.028 mm D |
| Enclosure Type | : | IP10/IP20 |
| Mounting Type | : | Front |
| NEMA Rating | : | NEMA 1/3R/4/4X/12/13 |
| Operator Type | : | Pushbutton/Selector Switch |
| Series | : | MCB |
| Terminal Type | : | Screw |
| Type | : | Modular Non-illuminated |
| Size | : | 22 mm |
| Contact Configuration | : | 2NC |
| Contact Rating | : | 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1022/ABB_MCB-02_Specification_Sheet.pdf
