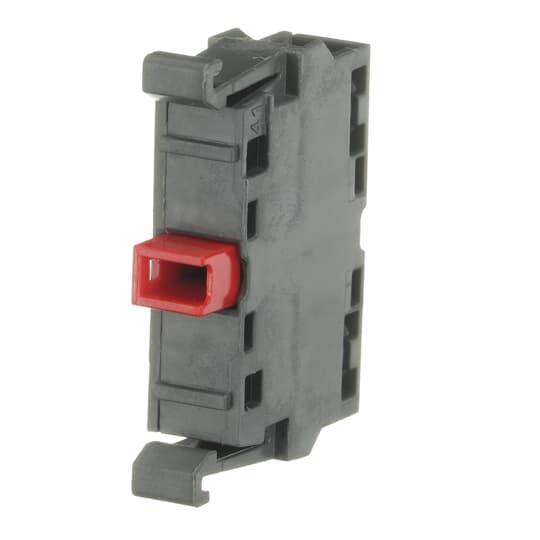

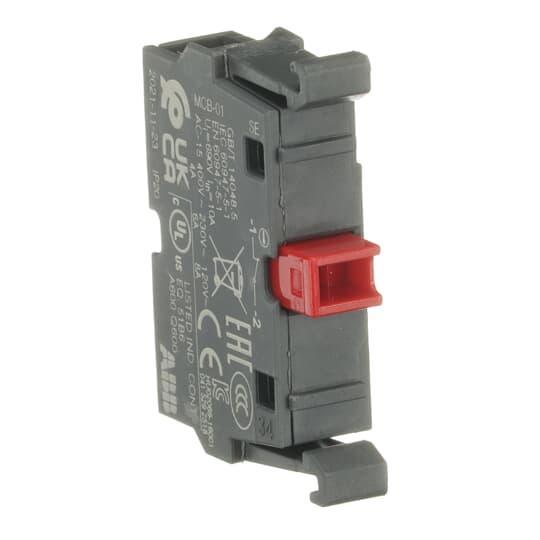

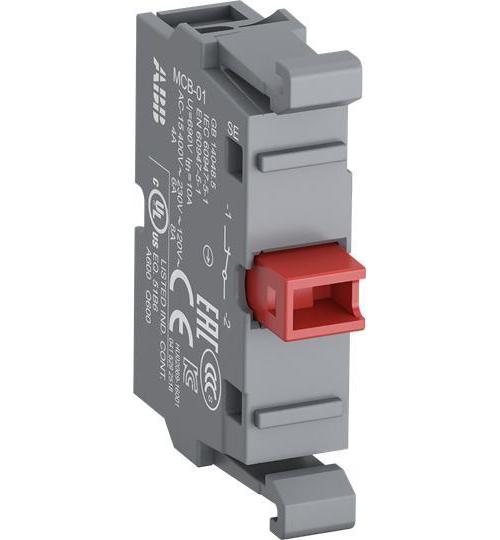

ABB MCB-01 CONTACT BLOCK, 2 ACROSS,
Modular contact block
Block Material | : | Polycarbonate |
Contacts | : | 1 |
Dimensions | : | 0.044 x 0.01 x 0.028 mm |
Enclosure Type | : | IP20 |
Mounting Type | : | Front |
NEMA Rating | : | NEMA 1/3R/4/4X/12/13 |
Operator Type | : | Pushbutton/Selector Switch |
Series | : | MCB |
Terminal Type | : | Screw |
Type | : | Modular Non-illuminated |
Size | : | 22 mm |
Contact Configuration | : | 1NC |
Contact Rating | : | 6 A at 230 VAC, 5 A at 24 VDC |
Contact Material | : | Gold Plated Silver |
