ABB FS401E-B16/0.03
ABB

ABB FS401E-B16/0.03

loading
ABB
Email Print

FS401E-B16/0.03

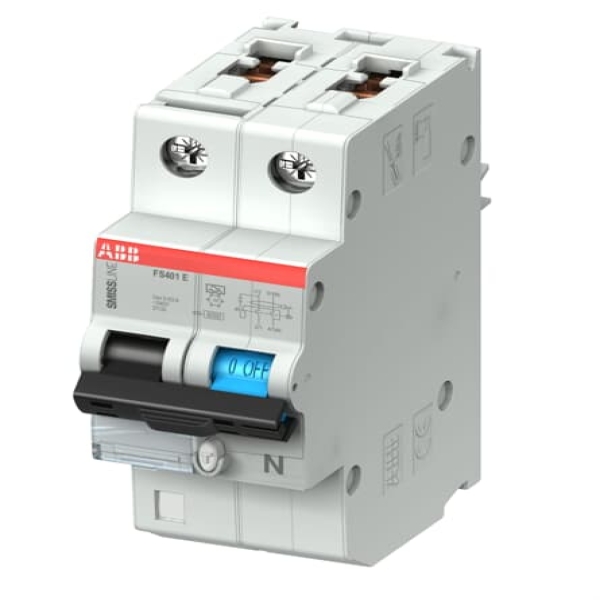

ABB Smissline FS401E-B16/0.03 FS400E Type A Residual Current Circuit Breaker, 230/400 VAC, 16 A, 6 kA Interrupt, 2 Poles, B-Curve Trip

  • Item#: FS401E-B16/0.03
  • Mfr#: FS401E-B16/0.03
  • UPC: 804325565349
  • 30 mA rated residual current
  • Instantaneous operating characteristic, right position of neutral terminals, 1 protected poles
  • Residual current circuit breaker with overcurrent protection
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

ABB Smissline Residual Current Circuit Breaker, Type A, Series: FS400E, 230/400 VAC, 16 A, 50/60 Hz Frequency, 6 kA Interrupt, B-Curve Trip, 2 Pole, IP20/IP40 Enclosure, Plug-In Mounting, -25 to 55 deg C, 72 mm L x 36 mm W x 91 mm H x 75 mm D Dimensions

SPECIFICATIONS

Dimensions      :      72 mm L x 36 mm W x 91 mm H x 75 mm D
Enclosure Type      :      IP20/IP40
Frequency Rating      :      50/60 Hz
Mounting Type      :      Plug-In
Series      :      FS400E
Temperature Rating      :      -25 to 55 deg C
Type      :      Type A
Voltage Rating      :      230/400 VAC
Amperage Rating      :      16 A
Interrupt Rating      :      6 kA
Number of Poles      :      2
Trip Type      :      B-Curve

DOCUMENTS

  • pdf
    Brochure     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ABB_FS401E_B13_0_03_Brochure.pdf
  • pdf
    Datasheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ABB_FS401E_B16_0_03_Datasheet.pdf
