- ABB F202AC-63/0.1
F202AC-63/0.1

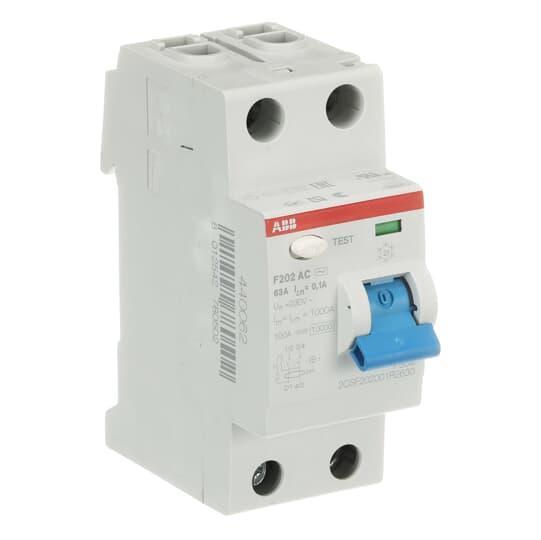

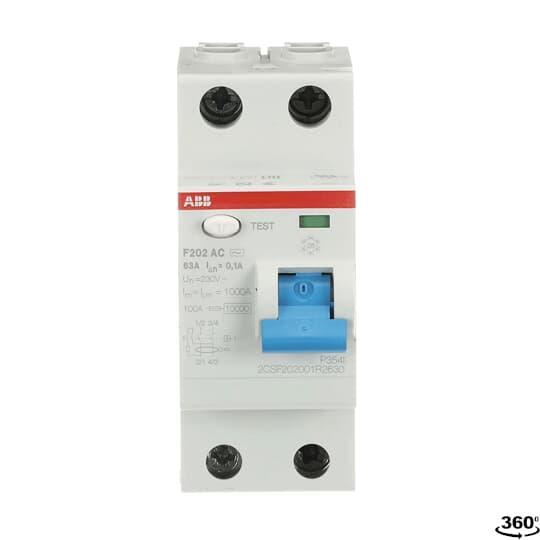

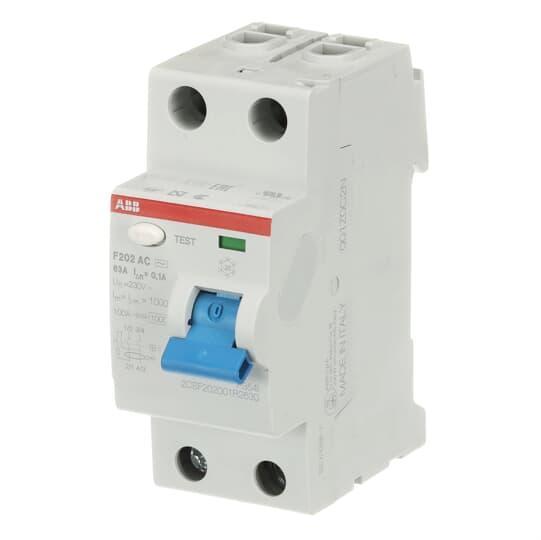

ABB F202AC-63/0.1 F200 Type AC Low Voltage Residual Current Circuit Breaker, 230/400 VAC, 63 A, 1 kA, 2 Poles
- CP#:
- Item#: F202AC-63/0.1
- Mfr#: F202AC-63/0.1
- UPC: 662019228884
- The RCCBs F200 series assures protection to people and installations against fault current to earth
- A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The Residual current circuit breaker RCCBs are the safest device to detect and trip against electrical leakage currents, thus ensuring protection against electric shock caused by indirect contacts. These devices must be used in series with an MCB or fuse which protects them from the potentially damaging thermal and dynamic stresses of any over currents. They also act as the main disconnecting switches upstream of any derived MCBs.
ABB Residual Current Circuit Breaker, Type AC Low Voltage, Series: F200, 230/400 VAC, 63 A, 50/60 Hz, 1 kA Interrupt, 2 Poles, Bi-Directional Cylinder-Lift Terminal, IP20, DIN Rail Mount, -25 to 55 deg C, 0.085 m H x 0.035 m W x 0.069 m D
SPECIFICATIONS
| Connection Type | : | Bi-Directional Cylinder-Lift Terminal |
| Dimensions | : | 0.085 m H x 0.035 m W x 0.069 m D |
| Enclosure Type | : | IP20 |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | DIN Rail |
| Series | : | F200 |
| Temperature Rating | : | -25 to 55 deg C |
| Type | : | Type AC Low Voltage |
| Voltage Rating | : | 230/400 VAC |
| Amperage Rating | : | 63 A |
| Interrupt Rating | : | 1 kA |
| Number of Poles | : | 2 |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/597/ABB_F202_AC_63_0_1_Datasheet.pdf
