E140DU140

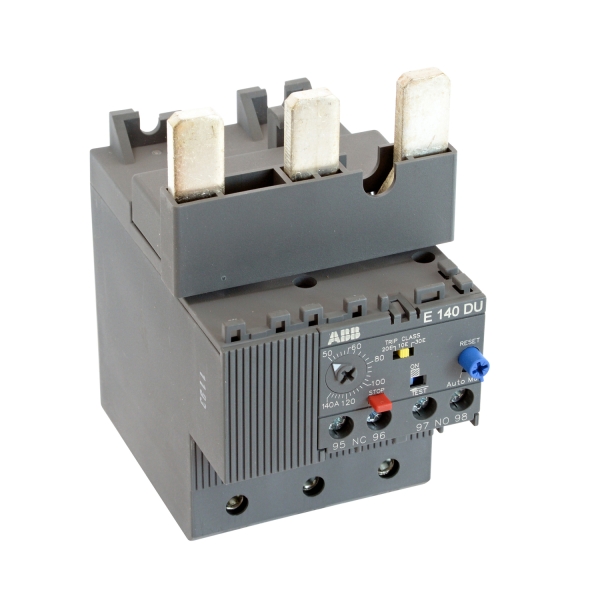

ABB E140DU140 Electronic Overload Relay, 50 to 140 A, 1NC-1NO Contact
- CP#:
- Item#: E140DU140
- Mfr#: E140DU140
- UPC: 662019482873
- Flexible overload protection
- Motor applications up to 1250 A
- Automatic or manual reset selectable
- RESET, TEST and stop functions
- 10E, 20E, 30E trip class
- Direct contactor mounting up to 320 A
- 600 VAC/VDC auxiliary circuit
- Offers reliable protection for motors in the event of overload or phase failure
- For use with 3-phase motors
- Mounted on contactor
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
An alternative to conventional bimetallic overload protection, electronic overload relays offer magnetic trip functionality for reliable protection for motors in the event of overload or phase failure. Simple to use and apply, the electronic overload relay is valued for its wide setting range, high accuracy, high operational temperature range and selectable trip classes (10E, 20E, 30E).
ABB Electronic Overload Relay, Series: E140, 50 to 140 A, 50/60 Hz Frequency, 1NC-1NO Contact Form, 140 A at 1000 VAC Contact, 3 Pole, Threaded Terminal, IP20 Enclosure, -25 to 70 deg C, 134.2 mm H x 70 mm W x 104.4 mm D Dimensions
SPECIFICATIONS
| Number of Poles | : | 3 |
| Frequency Rating | : | 50/60 Hz |
| Enclosure Type | : | IP20 |
| Amperage Rating | : | 50 to 140 A |
| Contact Rating | : | 140 A at 1000 VAC |
| Temperature Rating | : | -25 to 70 deg C |
| Series | : | E140 |
| Terminal Type | : | Threaded |
| Dimensions | : | 134.2 mm H x 70 mm W x 104.4 mm D |
| Contact Form | : | 1NC-1NO |
DOCUMENTS
-
Document https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520599281942.pdf
