DP60C3P-1

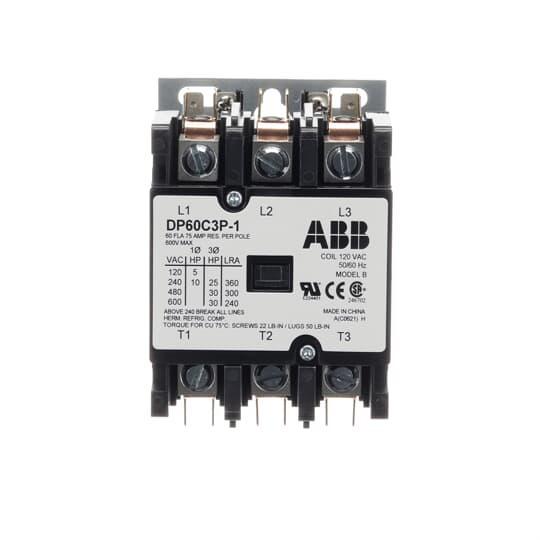

ABB DP60C3P-1 Definite Purpose Contactor, 120 VAC V Coil, 60 A, 3NO Contact, 3 Poles
- CP#:
- Item#: DP60C3P-1
- Mfr#: DP60C3P-1
- UPC: 662019750101
- Industry standard mounting plate with easy access mounting holes
- Coil terminals are provided with #6-32 screws and (1) 0.25 Quick-connect or dual 0.25 Quick-connect terminals
- Exclusive hex, slotted, Phillips 10 to 32 AWG terminal screws for main terminals
- Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E-magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from high arc-resistant polyester
- Designed for HVAC and refrigeration equipment operation and control
- 62/59 VA inrush, 9/6 VA closed coil power rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB Definite Purpose Contactor, 120 VAC Coil, 60 A Maximum Load Current, 7/9/59/62 VA Coil, 3 Pole, 50/60 Hz Frequency, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 600 VAC Contact, SZ 60 Size, Box Lug Terminal, NEMA 5/Open Enclosure, 130 deg C Operating, DIN Rail Mounting, 4.15 in H x 2.75 in W x 3.56 in D Dimensions
SPECIFICATIONS
| Mounting Type | : | DIN Rail |
| Frequency Rating | : | 50/60 Hz |
| Enclosure Type | : | NEMA 5/Open |
| Coil Voltage | : | 120 VAC |
| Contact Configuration | : | 3NO |
| Number of Poles | : | 3 |
| Operating Temperature | : | 130 deg C |
| Contact Type | : | Non-Reversing |
| Terminal Type | : | Box Lug |
| Number of Auxiliary Contacts | : | 1NO-1NC |
| Size | : | SZ 60 |
| Dimensions | : | 4.15 in H x 2.75 in W x 3.56 in D |
| Contact Rating | : | 600 VAC |
| Coil Power Rating | : | 7/9/59/62 VA |
| Maximum Load Current | : | 60 A |
