DP30C2P-1

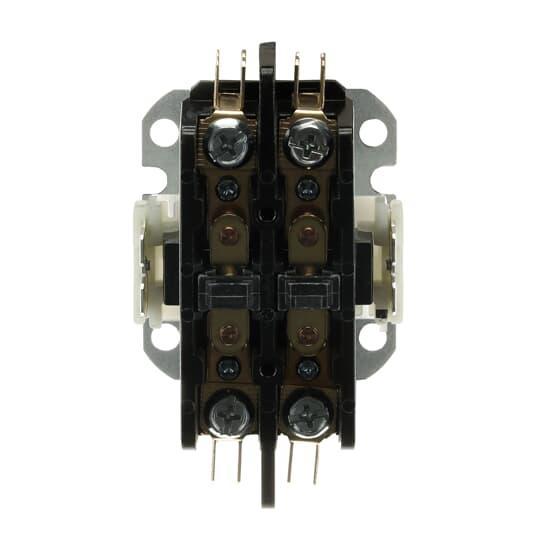

ABB DP30C2P-1 Definite Purpose Contactor, 120 VAC V Coil, 30 A, 2NO Contact, 2 Poles
- CP#:
- Item#: DP30C2P-1
- Mfr#: DP30C2P-1
- UPC: 662019749464
- Industry standard mounting plate with easy access mounting holes
- Coil terminals are provided with #6-32 screws and (1) 0.25 Quick-connect or dual 0.25 Quick-connect terminals
- Exclusive hex, slotted, Phillips 10 to 32 AWG terminal screws for main terminals
- Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E-magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from high arc-resistant polyester
- Designed for HVAC and refrigeration equipment operation and control
- 33/30 VA inrush, 8/6.5 VA closed coil power rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB Definite Purpose Contactor, 120 VAC Coil, 30 A Maximum Load Current, 6.5/8/30/33 VA Coil, 2 Pole, 50/60 Hz Frequency, Non-Reversing Contact, 2NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 600 VAC Contact, SZ 30 Size, Screw Terminal, NEMA 5/Open Enclosure, 130 deg C Operating, DIN Rail Mounting, 3.3 in H x 2 in W x 2.44 in D Dimensions
SPECIFICATIONS
| Mounting Type | : | DIN Rail |
| Frequency Rating | : | 50/60 Hz |
| Enclosure Type | : | NEMA 5/Open |
| Coil Voltage | : | 120 VAC |
| Contact Configuration | : | 2NO |
| Number of Poles | : | 2 |
| Operating Temperature | : | 130 deg C |
| Contact Type | : | Non-Reversing |
| Terminal Type | : | Screw |
| Number of Auxiliary Contacts | : | 1NO-1NC |
| Size | : | SZ 30 |
| Dimensions | : | 3.3 in H x 2 in W x 2.44 in D |
| Contact Rating | : | 600 VAC |
| Coil Power Rating | : | 6.5/8/30/33 VA |
| Maximum Load Current | : | 30 A |
