CP310R-11

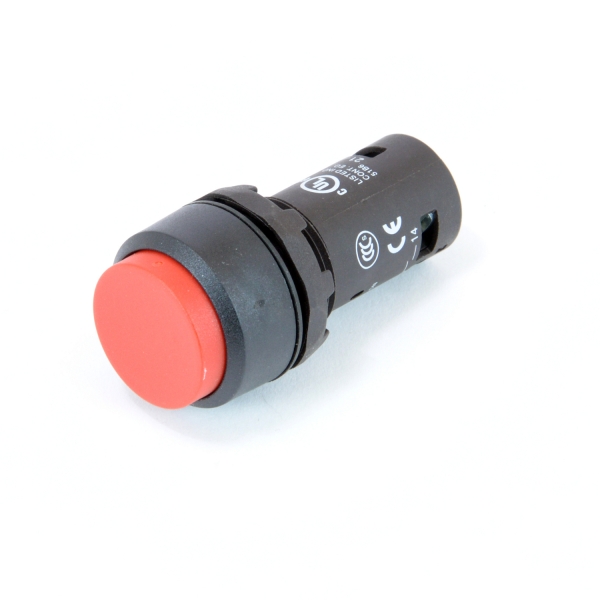

ABB CP3-10R-11 CP Series Compact Non-Illuminated Pushbutton, 0.06 m L x 0.03 m W x 0.03 m H, 1NO-1NC Contact, Red
- CP#:
- Item#: CP310R-11
- Mfr#: CP310R-11
- UPC: 662019041681
- The same front-of-panel design and appear consistent when combined
- An all-in-one construction and rugged design for added simplicity and ease of installation
- According to IEC 60529, IEC 60947-1, EN 60529 auxiliary terminals IP20 deg of protection
- 0.5 million mechanical durability
- Level 0 - information enabled
- 50/60 Hz frequency rating
- Integrated LED (wide range of voltages)
- BA9s base for filament bulb or LED
- 1.5 A at 24/127 VAC, 1 A at 220/240 VAC and 0.3 A at 24 VDC contact rating
- 22 mm mounting
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The compact range is designed to be our most efficient solution when it comes to assembly and cost, suitable for the most demanding environments. it can also be combined with the modular range to cover the needs of additional flexibility.
ABB Non-Illuminated Pushbutton, Compact, Series: CP Series, 0.06 m L x 0.03 m W x 0.03 m H Size, 1NC-1NO Contact Configuration, Momentary Contact Mode, 0.2 A at 125 VDC Contact, 2 Positions, Bezel/Housing: Black Plastic, Extended Pushbutton Actuator, NEMA 1/3R/4/4X/12/13/IP66/IP67/IP69K Enclosure, Plastic, Red
SPECIFICATIONS
| Actuator | : | Extended Pushbutton |
| Bezel/Housing | : | Black Plastic |
| Contact Mode | : | Momentary |
| Contact Rating | : | 0.2 A at 125 VDC |
| Enclosure Type | : | NEMA 1/3R/4/4X/12/13/IP66/IP67/IP69K |
| Material | : | Plastic |
| Number of Positions | : | 2 |
| Series | : | CP Series |
| Type | : | Compact |
| Size | : | 0.06 m L x 0.03 m W x 0.03 m H |
| Contact Configuration | : | 1NC-1NO |
| Color | : | Red |
