CL2-513G

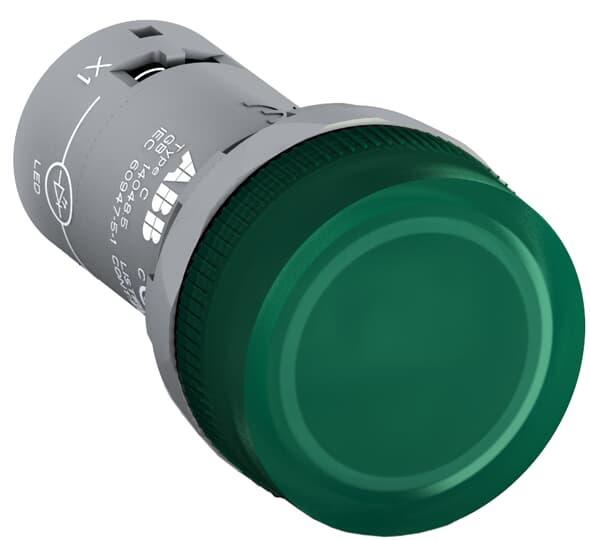

ABB CL2-513G Compact Illuminated Pilot Light With Integrated LED, 110 to 130 VAC, 15 to 17 mA
- CP#:
- Item#: CL2-513G
- Mfr#: CL2-513G
- UPC: 888614470149
- All-in-one design
- Up to 2 electrical contacts
- Suitable in the toughest environments IP 66/67/69K
- Integrated LED, no bulb needed
- Same front as modular range
- 42 mm built-in depth
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The compact range is designed to be our most efficient solution when it comes to assembly and cost, suitable for the most demanding environments. It can also be combined with the modular range to cover the needs of additional flexibility.
ABB, CL2-513G, Pilot Light With Integrated LED, Illuminated, Series: Compact, 110 to 130 VAC, 15 to 17 mA, Green Lens, Integrated LED Lamp, 22 mm Size, Flat/Round Shape, BA9s Base, >/=50000 hr Average Life, Screw Terminal, NEMA 1/3R/4/4X/12/13 Enclosure, Environmental Conditions: -25 to 70 deg C Operating, -40 to 85 deg Storage, 40 to 70% Relative Humidity
SPECIFICATIONS
| Average Life | : | >/=50000 hr |
| Base Type | : | BA9s |
| Enclosure Type | : | NEMA 1/3R/4/4X/12/13 |
| Environmental Conditions | : | -25 to 70 deg C Operating, -40 to 85 deg Storage, 40 to 70% Relative Humidity |
| Lamp Type | : | Integrated LED |
| Lens Color | : | Green |
| Series | : | Compact |
| Shape | : | Flat/Round |
| Size | : | 22 mm |
| Terminal Type | : | Screw |
| Type | : | Illuminated |
| Voltage Rating | : | 110 to 130 VAC |
| Amperage Rating | : | 15 to 17 mA |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1020/ABB_CL2-513G_Specification_Sheet.pdf
