ABB
CL-513R

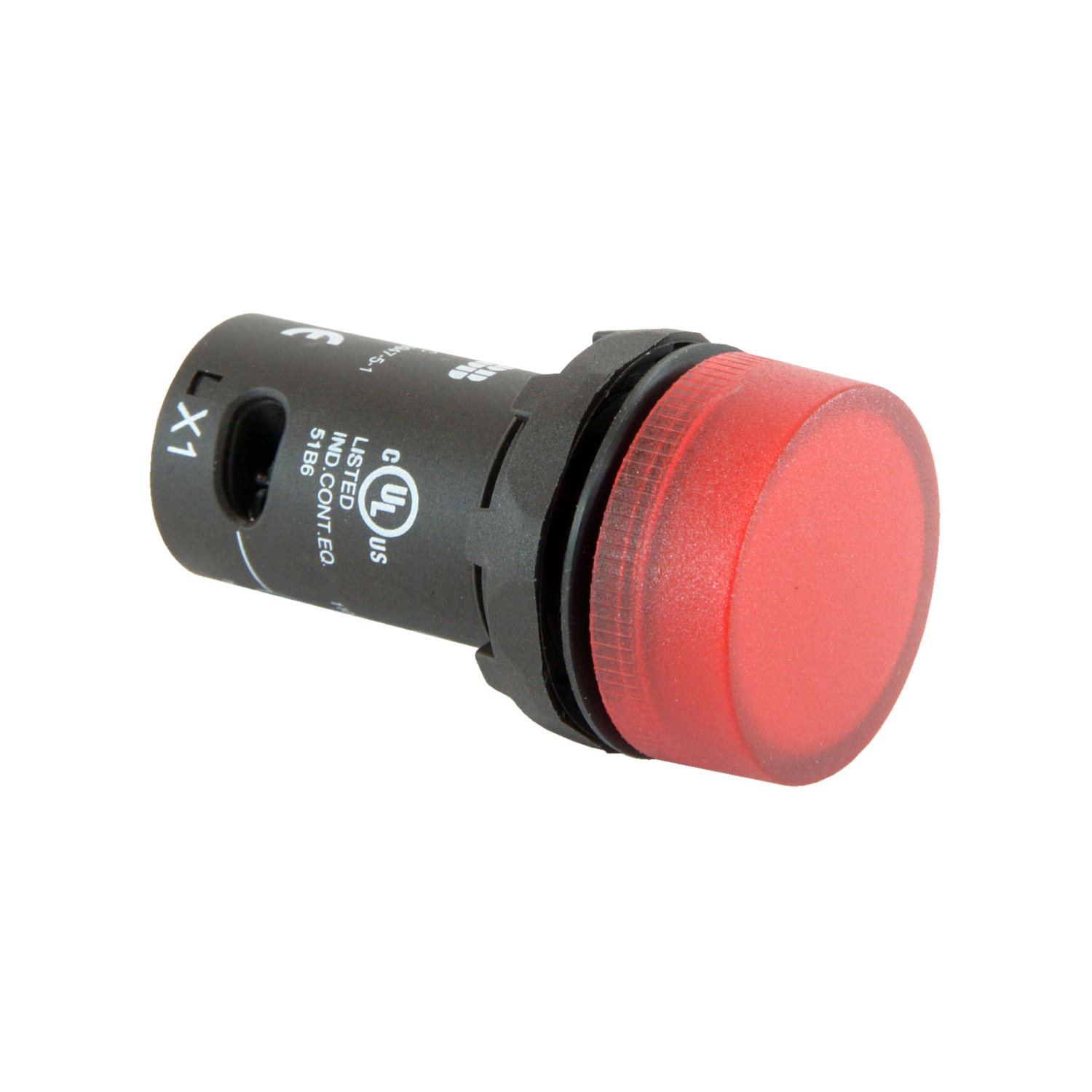

ABB CL-513R CL Series Illuminated Pilot Light, 110 to 130 VAC, 15 mA, Panel Mount
- Item#: CL-513R
- Mfr#: CL-513R
- UPC: 662019103167
- Compact range devices may be combined with the modular range to cover the requirements of additional flexibility
- Professional range of mushroom head pilot lights
- The all-in one design makes everything easier, the entire functionality is condensed into one unit
- Works in a perfect harmony with the extensive modular range since the front design is identical
- Robust design
- Fast mounting
- Low built-in depth
- Full voltage LED
- Finger safe
- 50/60 Hz frequency
- 22 mm panel mounting
- -30 to 85 deg C storage
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABBs pilot devices are a part of the comprehensive range of high quality low voltage products and systems for industrial control applications. ABB has a wide network of external channel partners, such as distributors, system integrators and panel builders all around the world.
ABB Pilot Light, Illuminated, Series: CL Series, 110 to 130 VAC, 15 mA, Red Lens, LED Lamp, 60 Lumens, Bezel/Housing: Plastic, 50000 hr Average Life, Screw Terminal, IP66/IP67/IP69K, Panel Mount, Environmental Conditions: -25 to 70 deg C Operating
SPECIFICATIONS
| Average Life | : | 50000 Bezel/Housing |
| Bezel/Housing | : | Plastic |
| Color | : | Red |
| Enclosure Type | : | IP66/IP67/IP69K |
| Environmental Conditions | : | -25 to 70 deg C Operating |
| Lamp Type | : | LED |
| Lens Color | : | Red |
| Lumens | : | 60 Lumens |
| Series | : | CL Series |
| Terminal Type | : | Screw |
| Type | : | Illuminated |
| Voltage Rating | : | 110 to 130 VAC |
| Amperage Rating | : | 15 mA |
| Mounting Type | : | Panel |
