CE4T-10R-11

ABB CE4T-10R-11 40MM TW-REL RED, 1

  • Item#: CE4T-10R-11
  • Mfr#: CE4T-10R-11
  • UPC: 662019201931
  • 0.5 million mechanical durability
  • 50/60 Hz frequency rating
  • 0.04 mm H x 0.03 mm W x 0.073 mm D dimension
  • 24/127 VAC, 1.5 A, 220/240 VDC, 1 A rated AC current
  • 24 VDC/0.3 A, 125 VDC/0.2 A rated DC current
  • Long lifetime thanks to self-cleaning contacts
  • Compact range provides extremely reliable IP66, IP67 and IP69K products in just one ordering code simplifying ordering and administration
  • Reduce installation size with compact range
  • High chemical resistance polycarbonate
  • Finger-safe terminals
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

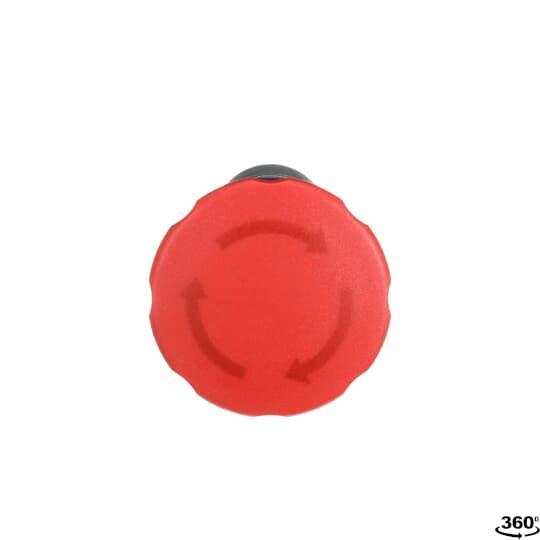

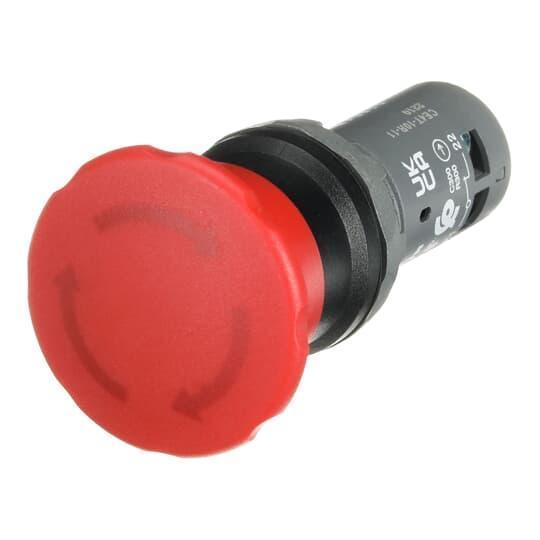

Compact Emergency Stop - Twist release - Mushroom 40mm - Red - Non-illuminated - Black plastic - 1NO+1NC

SPECIFICATIONS

Actuator      :      Mushroom Head
Bezel/Housing      :      Plastic
Contact Rating      :      10 A at 250 VAC/VDC
Enclosure Type      :      NEMA 1/3R/4/4X/12/13/IP20
Environmental Conditions      :      -25 to 70 deg C
Legend      :      Emergency Stop
Material      :      Plastic
Mounting Type      :      Panel
Series      :      Compact
Terminal Type      :      Screw
Size      :      40 mm
Contact Configuration      :      1NC-1NO
Operator Type      :      Push-Lock Twist-Release
Color      :      Red/Black
