B7-30-10-84

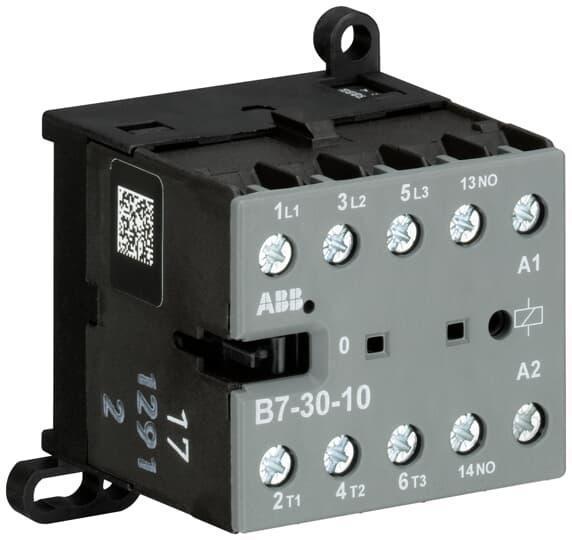

ABB B7-30-10-84 Magnetic Miniature Contactor, 110 to 127 VAC V Coil, 16 A, 3NO Contact, 3 Poles
- CP#:
- Item#: B7-30-10-84
- Mfr#: B7-30-10-84
- UPC: 804325394697
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB Miniature Contactor, Magnetic, Series: B7, 110 to 127 VAC Coil, 16 A Maximum Load, 3 Pole, 50/60 Hz, 3 kW, Non-Reversing Contact, 3NO, 1NO Auxiliary Contacts, 690 VAC Contact, Screw Terminal, IP20, 10000000 Cycles Operating Cycles, -20 to 55 deg C Operating, DIN Rail/Wall Mount, 57.5 mm H x 52.5 mm W x 46.5 mm D
SPECIFICATIONS
| Mounting Type | : | DIN Rail/Wall |
| Frequency Rating | : | 50/60 Hz |
| Enclosure Type | : | IP20 |
| Type | : | Magnetic |
| Coil Voltage | : | 110 to 127 VAC |
| Contact Configuration | : | 3NO |
| Number of Poles | : | 3 |
| Operating Temperature | : | -20 to 55 deg C |
| Dimensions | : | 57.5 mm H x 52.5 mm W x 46.5 mm D |
| Terminal Type | : | Screw |
| Wattage | : | 3 kW |
| Contact Type | : | Non-Reversing |
| Contact Rating | : | 690 VAC |
| Operating Cycles | : | 10000000 Cycles |
| Series | : | B7 |
| Number of Auxiliary Contacts | : | 1NO |
| Maximum Load Current | : | 16 A |
