ABB AF80-30-11-13
ABB
Email Print

AF80-30-11-13

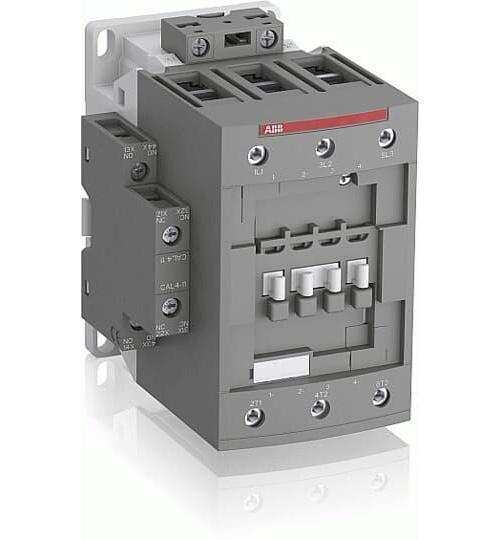

ABB AF80-30-11-13 Non-Reversing Line Contactor, 100 to 250 VAC/VDC V Coil, 105 A, 3NO Contact, 3 Poles

  • Item#: AF80-30-11-13
  • Mfr#: AF80-30-11-13
  • UPC: 888614013254
    • Compact, space saving design
    • Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
    • Can manage large control voltage variations
    • Reduced panel energy consumption
    • Very distinct closing and opening
    • Built-in surge suppression
    • Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
    • 125 A at 690 V, 100 A at 690 V, 85 A at 690 V rated operational current AC-1
    • 80 A at 220/230/240 V, 80 A at 380/400 V, 80 A at 415 V, 80 A at 440 V, 65 A at 500 V, 49 A at 690 V, 25 A at 1000 V rated operational current AC-3
    • 30 hp at 220 to 240 VAC 3 ph, 60 hp at 440 to 480 VAC 3 ph, 75 hp at 550 to 600 VAC 3 ph, 7-1/2 hp at 120 VAC 1 ph, 25 hp at 200 to 208 VAC 3 ph, 15 hp at 240 VAC 1 ph
    • 22 kW at 220/230/240 V, 37 kW at 380/400 V, 45 kW at 415 V, 45 kW at 440 V, 45 kW at 500 V, 45 kW at 690 V, 37 kW at 400 V
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

AF80 contactors are used for controlling power circuits up to 690 VAC and 220 VDC. They are mainly used for controlling 3 ph motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24 to 500 V 50/60 Hz or 20 to 500 VDC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 2-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles with side-mounted 1 NO + 1 NC auxiliary contact block, front-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 including the "Mechanically Linked" symbol on the contactor side. NC mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available. Note: 2-stack contactors available in some countries: please consult your ABB representative. AF..-30-..-11 not suitable for a direct control by PLC-output.

ABB Line Contactor, Non-Reversing, Series: AF Series, 100 to 250 VAC/VDC Coil, 105 A Maximum Load Current, 30 hp, 60 hp, 75 hp, 7-1/2 hp, 25 hp, 15 hp Coil, 3 Pole, 22/37/45 kW Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 125 A at 690 V Contact, AF80 Size, Screw Terminal, IP10/IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 2.76 in W x 4.57 in D x 4.7 in H Dimensions

SPECIFICATIONS

Enclosure Type      :      IP10/IP20
Type      :      Non-Reversing
Coil Voltage      :      100 to 250 VAC/VDC
Contact Configuration      :      3NO
Number of Poles      :      3
Operating Temperature      :      -40 to 70 deg C
Dimensions      :      2.76 in W x 4.57 in D x 4.7 in H
Size      :      AF80
Terminal Type      :      Screw
Wattage      :      22/37/45 kW
Coil Power Rating      :      30 hp, 60 hp, 75 hp, 7-1/2 hp, 25 hp, 15 hp
Contact Rating      :      125 A at 690 V
Operating Cycles      :      10000000 Cycles
Series      :      AF Series
Number of Auxiliary Contacts      :      1NO-1NC
Maximum Load Current      :      105 A

DOCUMENTS

  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1020/ABB_AF80-30-11-13_Specification_Sheet.pdf
