AF750-30-11-70

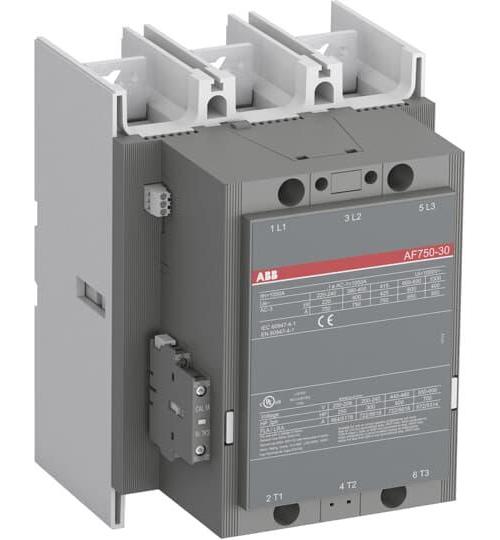

ABB AF750-30-11-70 AF750 Contactor, 100 VAC, 250 VDC V Coil, 900 A, 3NO Contact, 3 Poles
- CP#:
- Item#: AF750-30-11-70
- Mfr#: AF750-30-11-70
- UPC: 662019817415
- Non-reversing across the line contactor
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltages sags (SEMI F47 conditions of use on request)
- Built-in surge suppression
- AC or DC operated with electronic coil interface accepting a wide control voltage range, only 4 coils to cover control voltages between 48 to 500 VAC, 50/60 Hz and 24 to 500 VDC
- 880 VA pull-in, 12/5 VA holding coil power rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
AF technology as standard, AF contactors establish a new industry benchmark. The electronically controlled coil offers multiple benefits over conventional alternatives and together with ABB wide product offering, an optimal configuration, every time.
ABB Contactor, Series: AF750, 100 VAC, 250 VDC Coil, 900 A Maximum Load Current, 5/12/880 VA Coil, 3 Pole, 50/60 Hz Frequency, 400 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 1000 VAC Contact, Screw Terminal, IP20 Enclosure, -40 to 70 deg C Operating, DIN Rail Mounting, 283 mm H x 210 mm W x 242 mm D Dimensions
SPECIFICATIONS
| Mounting Type | : | DIN Rail |
| Frequency Rating | : | 50/60 Hz |
| Enclosure Type | : | IP20 |
| Coil Voltage | : | 100 VAC, 250 VDC |
| Contact Configuration | : | 3NO |
| Number of Poles | : | 3 |
| Operating Temperature | : | -40 to 70 deg C |
| Dimensions | : | 283 mm H x 210 mm W x 242 mm D |
| Terminal Type | : | Screw |
| Wattage | : | 400 kW |
| Contact Type | : | Non-Reversing |
| Coil Power Rating | : | 5/12/880 VA |
| Contact Rating | : | 1000 VAC |
| Series | : | AF750 |
| Number of Auxiliary Contacts | : | 1NO-1NC |
| Maximum Load Current | : | 900 A |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1020/ABB_AF750-30-11-70_Specification_Sheet.pdf
