AF265-30-11-13

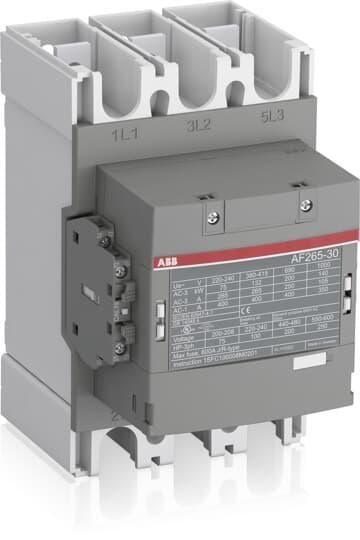

ABB AF265-30-11-13 AF265 3-Phase AC/DC Operated IEC Contactor, 100 to 250 VAC/VDC V Coil, 248 A, 3NO Contact, 3 Poles
- CP#:
- Item#: AF265-30-11-13
- Mfr#: AF265-30-11-13
- UPC: 888614142695
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- AF contactors can manage large control voltage variations one coil can be used for different control voltages used worldwide without any coil change
- AF series contactor coils are designed to utilize both AC (50/60 Hz) and DC control circuit inputs ranging from 24 to 500 VAC
- Main poles and auxiliary contact blocks 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically linked auxiliary contacts compliant with Annex L of IEC 60947-5-1)
- 8 kV rated impulse withstand voltage
- 600/1000 VAC rated insulation voltage
- 3000 m maximum operating altitude permissible
- 75 hp at 208 VAC, 200 hp at 440/480 VAC, 250 hp 550/600 VAC, 100 hp at 220/240 VAC, 75 hp at 200 VAC 3-phase power rating
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- These contactors are of the block type design with 3 main poles
- 248 A at 220 to 240 VAC 3-phase UL/CSA
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
AF series contactors are provided in either three or four power pole configurations with a variety of accessories including auxiliary contacts, close coupling adaptors, interlocks and busbars.
ABB, AF265-30-11-13, IEC Contactor, 3-Phase AC/DC Operated, Series: AF265, 100 to 250 VAC/VDC Coil, 248 A Maximum Load Current, 140 kW, 200 hp, 250 hp Coil, 3 Pole, 50/60 Hz Frequency, 200 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 265 Frame Size, Screw Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -25 to 50 deg C Operating, 225 mm H x 140 mm W x 180 mm D Dimensions
SPECIFICATIONS
| Frequency Rating | : | 50/60 Hz |
| Enclosure Type | : | IP00/IP20 |
| Type | : | 3-Phase AC/DC Operated |
| Coil Voltage | : | 100 to 250 VAC/VDC |
| Contact Configuration | : | 3NO |
| Number of Poles | : | 3 |
| Operating Temperature | : | -25 to 50 deg C |
| Dimensions | : | 225 mm H x 140 mm W x 180 mm D |
| Size | : | 265 Frame |
| Terminal Type | : | Screw |
| Wattage | : | 200 kW |
| Contact Type | : | Non-Reversing |
| Coil Power Rating | : | 140 kW, 200 hp, 250 hp |
| Operating Cycles | : | 5000000 Cycles |
| Series | : | AF265 |
| Number of Auxiliary Contacts | : | 1NO-1NC |
| Maximum Load Current | : | 248 A |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/101/ABB_LT140_30L_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/104/ABB_AF265_30_11_13_Specification_Sheet.pdf
