AF260-30-11-70

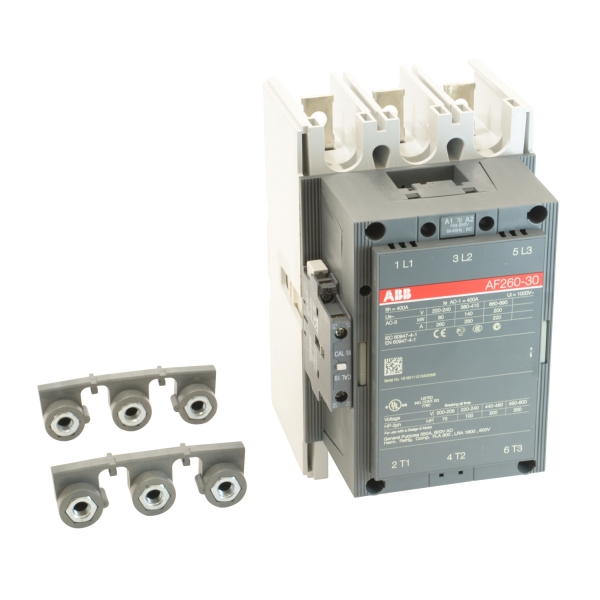

ABB AF260-30-11-70 A-Line Contactor, 100 VAC, 250 VDC V Coil, 400 A, 3NO Contact, 3 Poles
- CP#:
- Item#: AF260-30-11-70
- Mfr#: AF260-30-11-70
- UPC: 662019824130
- Compact, space saving design
- Reliable in all networks
- Coil terminal access in the front
- Easy-to-use accessories
- Built-in surge suppression
- Contactors ensure positive safety between their auxiliary contact blocks
- Easy maintenance of main contacts and coil inspection
- Can be mounted in any position
- Operates over an extended voltage range of 85 to 110 % of rated control voltage
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
AF technology as standard, AF contactors establish a new industry benchmark. The electronically controlled coil offers multiple benefits over conventional alternatives and together with ABB wide product offering, an optimal configuration, every time.
ABB A-Line Contactor, Series: AF260, 100 VAC, 250 VDC Coil, 400 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 200 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 1000 VAC Contact, Screw Terminal, NEMA 4/8 Enclosure, -40 to 70 deg C Operating, Snap-On/DIN Rail Mounting, 227 mm H x 140 mm W x 180.5 mm D Dimensions
SPECIFICATIONS
| Mounting Type | : | Snap-On/DIN Rail |
| Frequency Rating | : | 50/60 Hz |
| Enclosure Type | : | NEMA 4/8 |
| Coil Voltage | : | 100 VAC, 250 VDC |
| Contact Configuration | : | 3NO |
| Number of Poles | : | 3 |
| Operating Temperature | : | -40 to 70 deg C |
| Dimensions | : | 227 mm H x 140 mm W x 180.5 mm D |
| Terminal Type | : | Screw |
| Wattage | : | 200 kW |
| Contact Type | : | Non-Reversing |
| Contact Rating | : | 1000 VAC |
| Series | : | AF260 |
| Number of Auxiliary Contacts | : | 1NO-1NC |
| Maximum Load Current | : | 400 A |
DOCUMENTS
-
Document https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1503822679426.pdf
