AF205-30-11-13

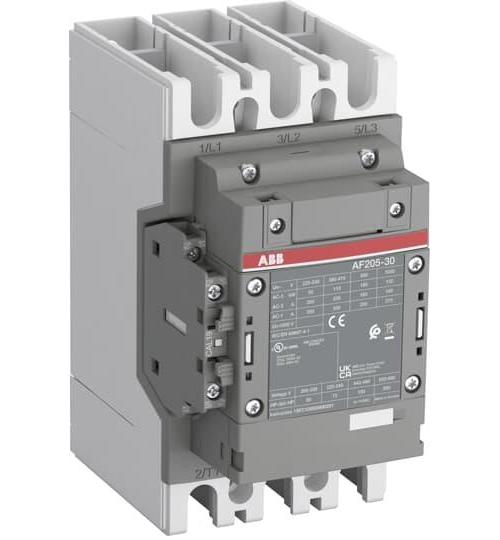

ABB AF205-30-11-13 AF205 Contactor, 100 VAC, 250 VDC V Coil, 300 A, 3NO Contact, 3 Poles
- CP#:
- Item#: AF205-30-11-13
- Mfr#: AF205-30-11-13
- UPC: 888614148017
- Can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request)
- Built-in surge suppression
- AC or DC operated with electronic coil interface accepting a wide control voltage range, only 4 control voltage ranges covering 24 to 500 VAC, 50/60 Hz and 20 to 500 VDC can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
AF technology as standard, AF contactors establish a new industry benchmark. The electronically controlled coil offers multiple benefits over conventional alternatives and together with ABB wide product offering, an optimal configuration, every time.
ABB, AF205-30-11-13, Contactor, Series: AF205, 100 VAC, 250 VDC Coil, 300 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 160 kW Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 1000 VAC Contact, Screw Terminal, IP00/IP20 Enclosure, 300 Cycles Operating Cycles, -25 to 50 deg C Operating, DIN Rail Mounting, 196 mm H x 105 mm W x 152 mm D Dimensions
SPECIFICATIONS
| Mounting Type | : | DIN Rail |
| Frequency Rating | : | 50/60 Hz |
| Enclosure Type | : | IP00/IP20 |
| Coil Voltage | : | 100 VAC, 250 VDC |
| Contact Configuration | : | 3NO |
| Number of Poles | : | 3 |
| Operating Temperature | : | -25 to 50 deg C |
| Dimensions | : | 196 mm H x 105 mm W x 152 mm D |
| Terminal Type | : | Screw |
| Wattage | : | 160 kW |
| Contact Rating | : | 1000 VAC |
| Operating Cycles | : | 300 Cycles |
| Series | : | AF205 |
| Number of Auxiliary Contacts | : | 1NO-1NC |
| Maximum Load Current | : | 300 A |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/17/ABB_AF09_30_01_11_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/190/ABB_AF205_30_11_13_Datasheet.pdf
